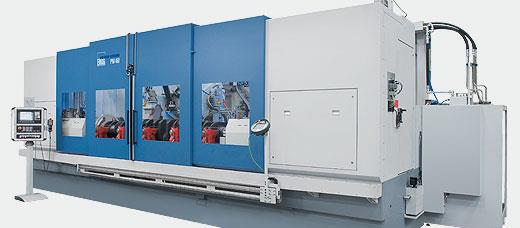

NONCIRCULAR GRINDING MACHINES PM 430 / PM 460

NAXOS-UNION has brought the grinding of large crankshafts up to date with its state-of-the-art PM 460 grinding machine. A new grinding process has allowed a reduction in the size of the machine, on which both main and pin......NAXOS-UNION has brought the grinding of large crankshafts up to date with its state-of-the-art PM 460 grinding machine. A new grinding process has allowed a reduction in the size of the machine, on which both main and pin bearings are centrically clamped and ground under continuous path control (pin chasing) – a process developed by NAXOS-UNION, and one in which the company is a worldwide leader. The machine is operated with the kind of comfort hitherto unknown, whereby automated processes can, if necessary, be mixed with manual interventions, to suit the individual pre-machining conditions of the workpiece.. The advantages of the PM 430 / PM 460:Complete-machining, i.e. grinding of main and pin bearings, on a single machine and in a single set-up ergo: there is no longer any need for differently equipped machines In-process measuring control for diameters Monitoring for signs of sagging, with compensation through load relief Excellent manufacturing quality through high-precision guideways and accurate controls Linear motor technology and hydrostatic guideways Both CBN and corundum grinding wheels can be used Cutting speeds of up to 125 m/s
