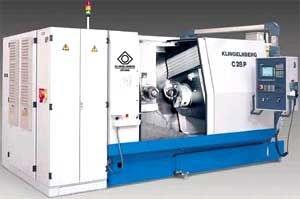

gear cutting machine

this model was developed primarily for the generating of spiral bevel gears with the klingelnberg cyclo-palloid method on the basis of the serial machines oerlikon c 40 and c 60. this method focuses on the simple and reli......this model was developed primarily for the generating of spiral bevel gears with the klingelnberg cyclo-palloid method on the basis of the serial machines oerlikon c 40 and c 60. this method focuses on the simple and reliable production of spiral bevel gears using only a limited number of tooling throughout the range of application of the machines. contact pattern formation can be predetermined, thus no time consuming contact pattern developments are required. the machine has been designed for conventional soft cutting as well as for finish cutting after case hardening using the hpg-s method (hard skiving) under consideration of appropriate cutting tools. suitable cutter heads and cutter blades fitting the range of application of the machine are available. the results achieved in terms of economical production and precision of the finished components comply with todays high standards in every respect. the cutter blades can be sharpened on a grinding fixture sm 20-5 which is intended for use on an existing surface grinding machine.
