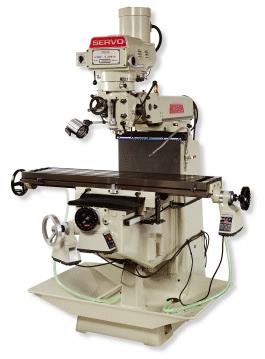

SV54 Manual Knee Mill

High tensile Meehanite castings. Hardened and ground with hard chrome plating. Quill return spring made in the USA. Hardened and ground precision back gear. Matched pair of Fafnir ABEC 7 angular contact spindle bearings H......High tensile Meehanite castings. Hardened and ground with hard chrome plating. Quill return spring made in the USA. Hardened and ground precision back gear. Matched pair of Fafnir ABEC 7 angular contact spindle bearings Hardened and ground ways, column and knee. Rulon® on table and cross ways to minimize stick-slip Auto lube with alarm Brief Specifications: 5 hp vari-speed drive 80-520 rpm back gear/ 600-4000 rpm direct NST 40 taper spindle nose. Travels: 34" Table 16" Cross 5" Quill Knee 16" Table 12" x 54". Table load 1,200 lbs. max. Floor area (W x D) 80" x 65". Height 87" Standard Mill Features Matched pair of Fafnir ABEC7 angular contact spindle bearings Hardened and ground quill with hard chrome plating Quill return spring made in USA Hardened and ground precision back gear Hardened and ground ways, column and knee Rulon on table and cross ways High tensile Meehanite cast iron Automatic way lubrication system with alarm Wipers (4) under table Front and rear way cover Halogen lamp (110 volt) Fan mounted in head for additional cooling Options Chip tray Servo Type 150 Power Feeds mounted on table and cross axis Servo Type 200 Power Feeds mounted on knee axis High Quality Tools Power drawbar Flood coolant Riser blocks - 4", 6", 8" Servo Turbo Drive for table, cross and knees 2-axis and 3-axis DROs from Acu-Rite, Anilam, Fagor, Newall, and Sony 52 piece clamping kit Precision milling vise ProCalc material directory & spindle speed calculator
