The PRS-7910 Station Manager is designed for the highest standards of performance, safety and reliability to meet requirements of a complex substation automation system(SAS). As a part of the SAS, it works as a station communication manager or protection management system,which collects, stores and maps signals and protection information of relays, measurement units, control units and other IEDs in the substation to transmit to the higher-level systems such as control center (CC} and distributed control system(DCS}.
1/1

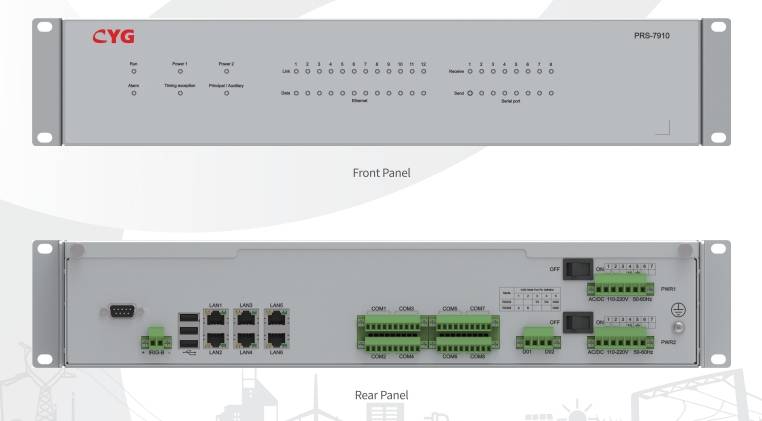

PRS-7910 Station Gateway
Negotiable
China
No.13, Keji North 1st Road, North Area of Hi-Tech Industrial Park,Nanshan District, Shenzhen 518057, China
+86 755-33018888
sunsy@cyg.com
Product Introduction
parameter
| Item | Parameter |
|---|---|
| Performance | Capable for data management and communication of the SAS for whole substation or power plant |
| Hardware | Dual 1.60 GHzCPUs,2GB RAM,optional 128~480 GB SLC SATASSD storage memory for historical data |
| Interface | Supports up to 8 Ethernet ports and 8 serial ports |
| Communication | Supporting several protocols,such as IEC 61850,IEC 60870-5-101/104,IEC 60870-5-103,Modbus and DNP3.0,etc. |
| System scale | Up to 1024 IEDs |
| Up to 32 control centers Database>200,000 signals | |
| Incident Records | Provides a complete record for auxiliary analysis of the conditions at the time of normal operation and system failure. |
