Size: DN25~DN450
Pressure range: 0.25-11.0Mpa
Accuracy range: 0.1~300um
Flow range: 10-3000Nm³/h
Filtration area: 0.1-50m²
Max Temp: 300C
Sealing gasket: silica gel, NBR, Teflon rubber, metal wound gasket
Material: Carbon steel, 304, 316L stainless steel
Surface treatment: polishing, sandblasting
Filter elements: 10”, 20”, 30", 40"

Filter material:PP melt blown, wire wound, folded, titanium rod filter, activated carbon filter, metal filter

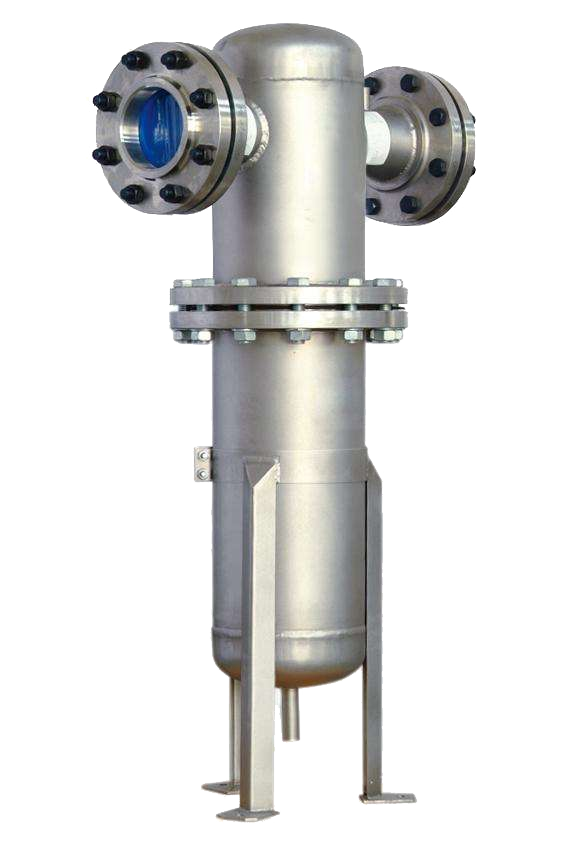

SGF-Y series compressed gas filters are widely used in gas pipelines. Its main function is to remove the residual impurities or water or bacteria in the gas. The filtered can be directly used for medical disinfection, food packaging, high purity gas production and other purposes. There are many kinds of filter element selection in the interior.
