Size: DN25~DN450

Pressure range: 0.6-11Mpa

Accuracy range: 25~5000um

Flow range: 1-1000m³

Filtration area: 0.1-8m²

Max Temp: 300C

Filter material: 304, 304L, 316, 316L

Material: Carbon steel, 304, 316L stainless steel

Surface treatment: polishing, sandblasting

Filter type: punching net blue plus wire mesh

Sealing gasket: silica gel, NBR, Teflon rubber, metal wound gasket

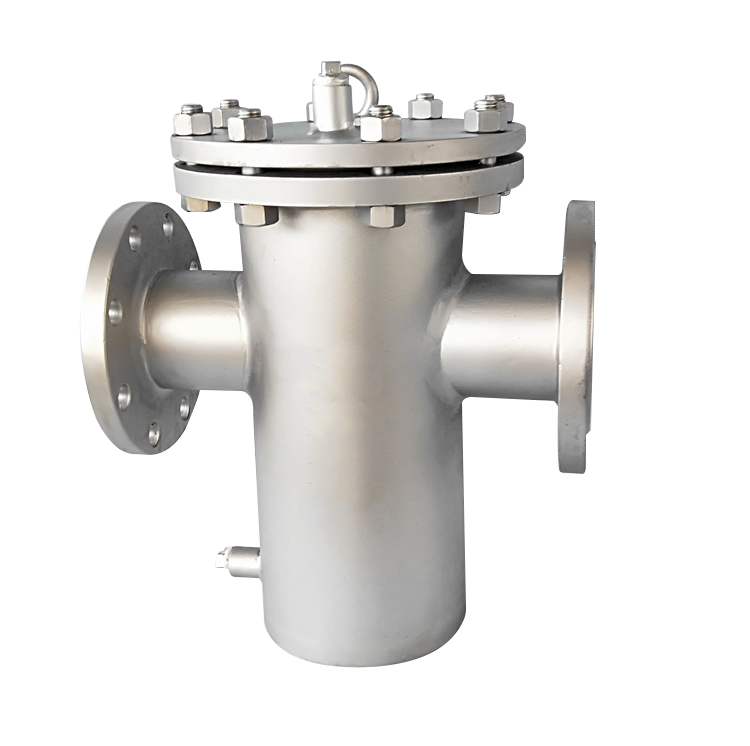

SN series basket filter is a small piece of equipment for removing a small amount of solid particles in liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter, its impurities are blocked, while the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, only the removable filter cartridge is taken out and re-loaded after treatment, because the shape of the filter cartridge is like a basket. So it's called basket filter.
