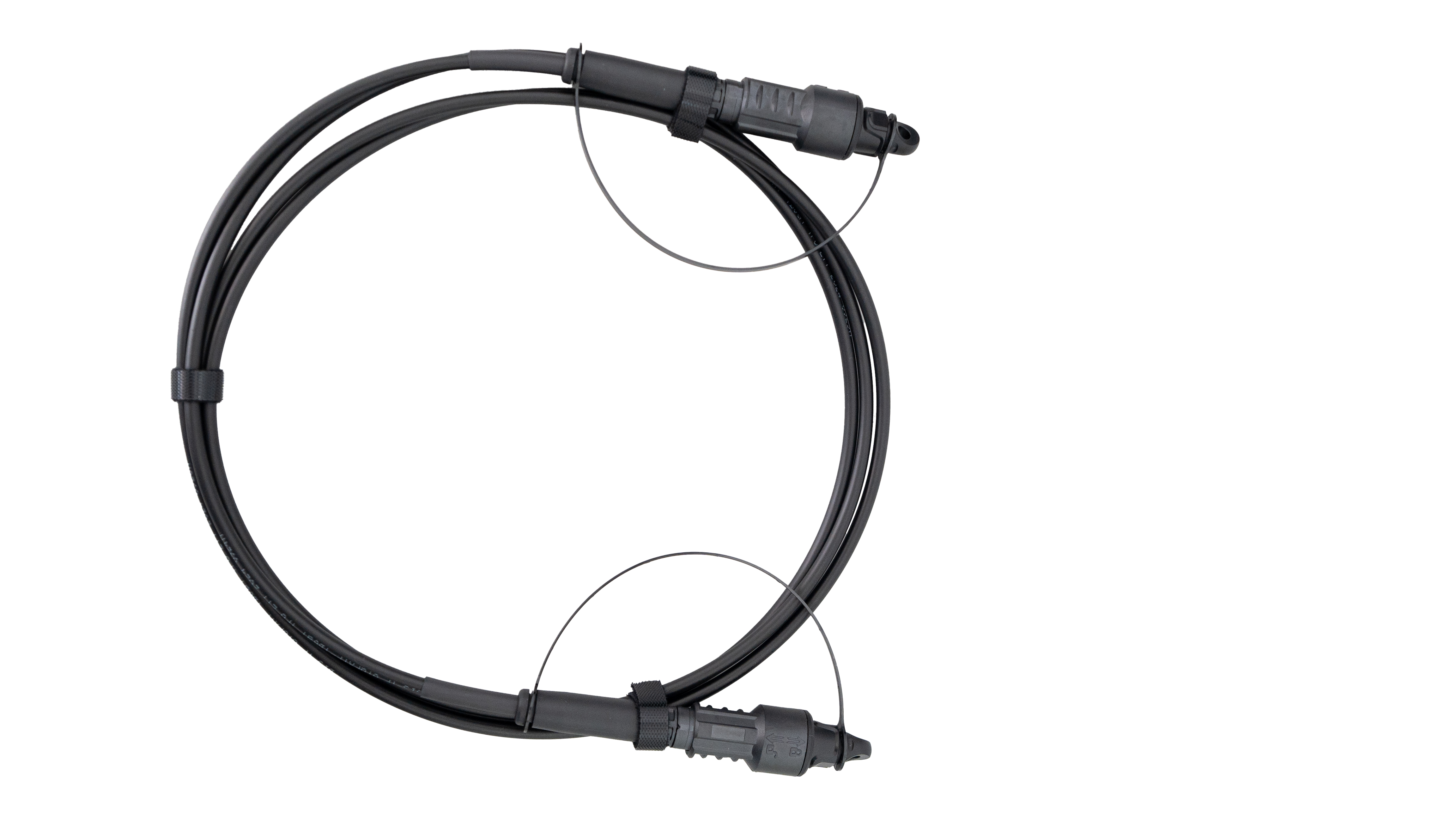

Pre-terminated Assembly—Single Core
Negotiable
China
Zhongtian Village, Hekou Town, Rudong County, Jiangsu Province
86-0513-83599738
Online Contact
Favorite
Product Introduction

The ZTT self-developed high-performance pre-terminated assembly offers high compatibility and integrates an "N-in-one" interface form. It achieves a maximum protection level of IP68 and can withstand a tensile force of up to 600N (standard compliance with IEC61753-1-2018 at 300N for 2 minutes). While delivering superior mechanical performance, it also meets optical and environmental performance requirements.

Product Advantages:

High tensile strength

High protection level

Easy to maintain

Compact footprint

Easy resource management

Convenient for construction

Product Parameters

Pipe size (pipe diameter)

Φ15mm

Type of connector

SC

Sealing performance

IP68

Pull force

300N/600N,2min

Insertion loss (max)

@1310nm: 0.3dB +0.4dB/km * L(km)

@1550nm: 0.3dB +0.3dB/km * L(km)

Return loss (min)

APC: 60db UPC: 50db

Adapted cable type

φ3mm/φ5mm/φ7mm/2×5mm, etc.

Working temperature

-20~65℃
