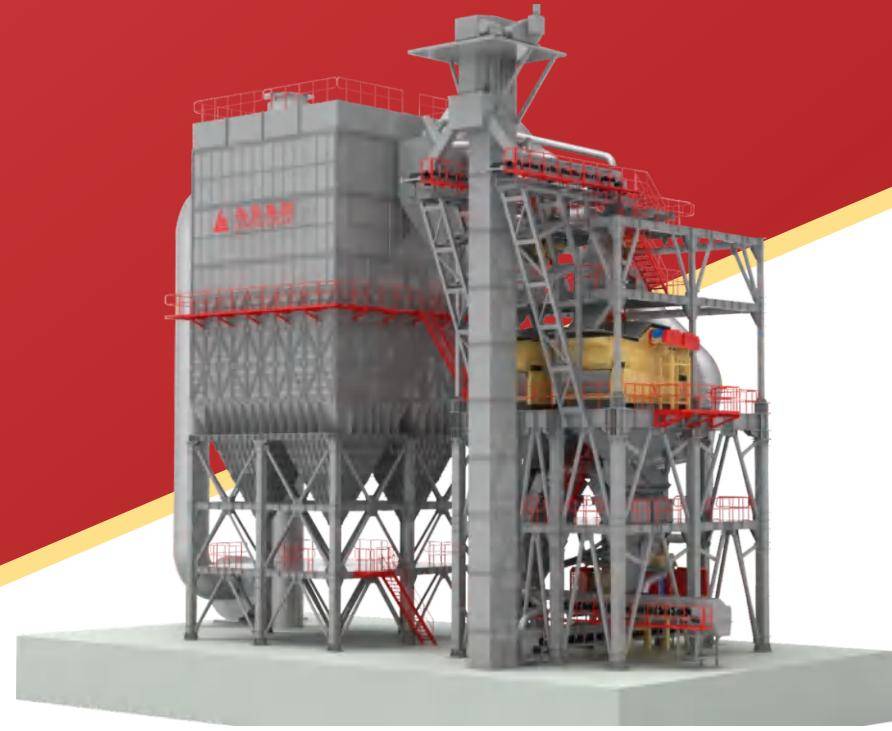

LZ Series Dry Tower-Type Aggregate Plant

Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
Online Contact
Favorite
Product Introduction

This series of products represents the core equipment for advanced shaping, sand making, screening, environmental dust removal, and the realization of intelligent production control systems. Drawing from advanced domestic and international sand and gravel production and processing process technologies, we have independently developed a closed-loop intelligent control, modular sand making system with multiple functions, including automatic feeding, conveying, sand making, screening, dust removal, powder removal, and automatic control of fineness modulus.

The mechanical performance of the core equipment in this series—the LM, VSI-C, and VSI-S three major series of rotor centrifugal sand making machines—has reached an excellent level within the industry. Particularly in high-demand aggregate crushing and sand making applications, these three series of rotor centrifugal sand making machines are applied in environmentally friendly production processes ranging from traditional wet processing to dry or semi-dry methods. This achieves a "dual low" model of low investment and low operating costs, delivering significant economic and social benefits, and truly putting into practice the concept within the crushing industry of "more crushing, less grinding; using crushing to replace grinding; energy saving and consumption reduction."

Product Parameters

Performance Parameters

Model LZ100 LZ120 LZ150 LZ200 LZ300 LZ450
Feed Size mm ≤32 ≤32 ≤40 ≤40 ≤40 ≤40
Production Capacity t/h 80-150 140-200 180-250 350-400 500-600 750-900
Discharge Size mm ≤4.75 ≤4.75 ≤4.75 ≤4.75 ≤4.75 ≤4.75
Sand Production Capacity t/h 90-100(Premium Sand) 100-120(Premium Sand) 140-150(Premium Sand) 180-200(Premium Sand) 280-300(Premium Sand) 420-450(Premium Sand)
Installed Power Approx. kW 650 800 1050 1200 1650 2200
