This series of products features advantages such as large conveying capacity, simple structure, easy maintenance, and standardized components. It is widely used in sectors such as mining, metallurgy, and coal to transport loose materials or packaged items. According to the conveying process requirements, it can be used as a single unit for conveying or combined with multiple units or other conveying equipment to form horizontal or inclined conveying systems, meeting the needs of different layout forms of operation lines. The belt conveyor can operate within an ambient temperature range of -20°C to +40°C, and the temperature of the conveyed materials should be below 50°C.
1/1

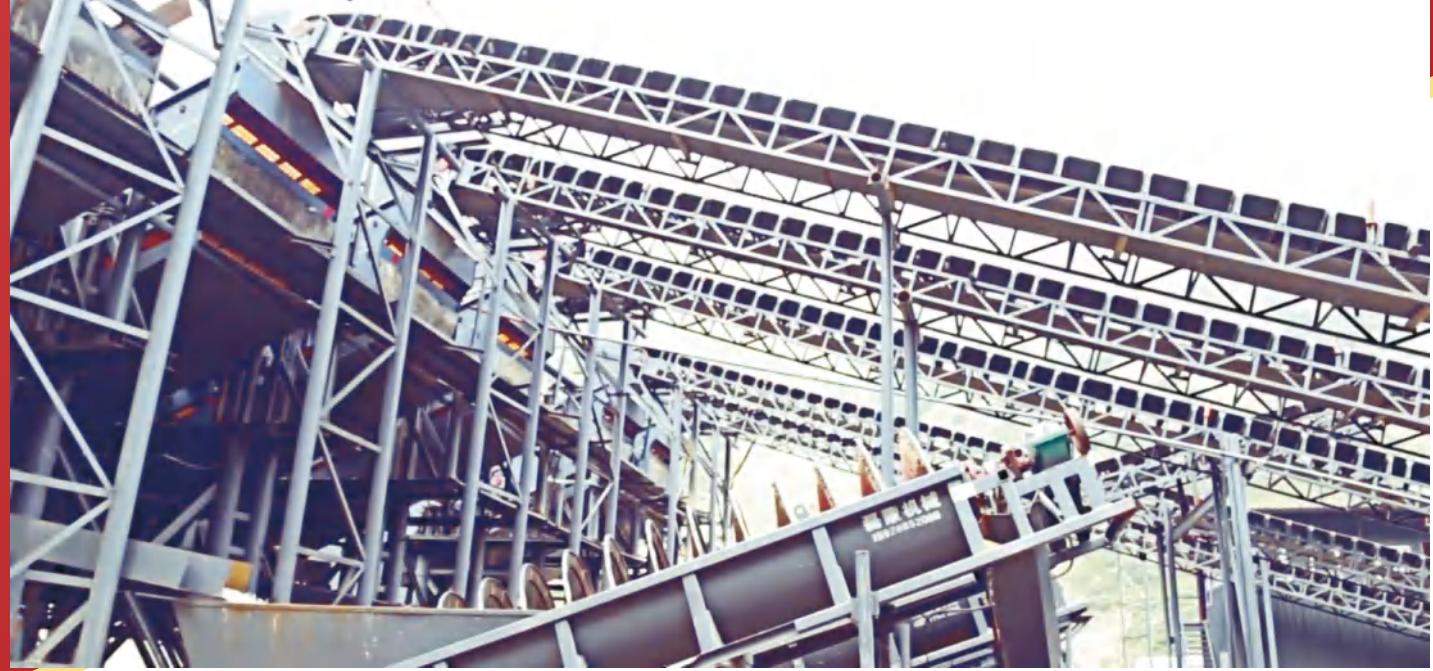

Belt Conveyor Series
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Performance Parameters
|
Belt Width |
Belt Length m/Power kW I (M/KW) |
Belt Length m/Power kW II (M/KW) |
Belt Length m/Power kW III (M/KW) |
Conveying Speed m/s |
Throughput t/h |
|---|---|---|---|---|---|
|
B650 |
≤12/4 |
12-20/7.5 |
20-30/7.5-11 |
1.3-1.8 |
80-190 |
|
B800 |
≤6/5.5 |
6-15/11 |
20-30/11-18.5 |
1.3-1.8 |
130-320 |
|
B1000 |
≤10/11 |
10-20/18.5 |
20-40/18.5-30 |
1.3-1.8 |
280-550 |
|
B1200 |
≤10/15 |
10-20/22 |
20-40/22-45 |
1.3-2 |
440-850 |
|
B1400 |
≤15/22 |
10-20/30 |
20-40/30-55 |
1.3-2 |
660-1200 |
|
B1600 |
≤15/30 |
10-20/37 |
20-40/37-75 |
1.3-2 |
800-1500 |
|
B1800 |
≤20/37 |
20-40/45-75 |
40-60/90-110 |
1.6-2.5 |
1200-2500 |
|
B2000 |
≤30/55 |
30-50/55-110 |
50-70/110-185 |
1.6-2.5 |
2000-3500 |
