This series of products is a washing and selection equipment for handling sand, gravel, and slag particles. This sand washer is widely used in industries such as sand and gravel yards, mining, building materials, transportation, chemical engineering, water conservancy and hydropower, and concrete mixing stations for the washing and selection of materials.
1/2

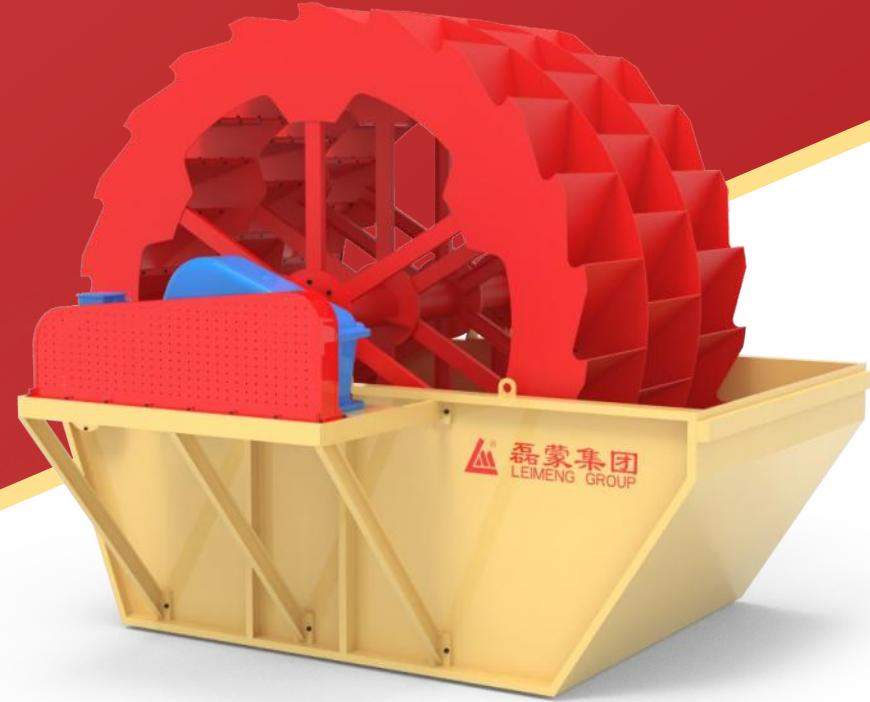

XSD Series Wheel Sand Washer
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Performance Parameters
|
Model |
Impeller Diameter (mm) |
Tank Length (mm) |
Feed Size (mm) |
Screw Speed (r/min) |
Processing Capacity (t/h) |
Water Consumption (t/h) |
Motor Power (kW) |
|---|---|---|---|---|---|---|---|
|
XSD2610 |
2600 |
3510 |
≤10 |
1.1 |
30-80 |
4-4.5 |
5.5 |
|
XSD3016 |
3000 |
4000 |
≤10 |
1.1 |
60-160 |
16-30 |
11 |
|
XSD3025 |
3000 |
4000 |
≤10 |
1.3 |
100-250 |
20-40 |
22 |
|
XSD4020 |
4000 |
4800 |
≤10 |
1.3 |
150-270 |
30-50 |
22 |
|
XSD4025 |
4000 |
4800 |
≤10 |
1.3 |
180-300 |
40-70 |
30 |
|
XSD4525 |
4500 |
5300 |
≤10 |
1.3 |
260-380 |
60-100 |
30 |
|
XSD5030 |
5000 |
5900 |
≤10 |
1.1 |
400-700 |
100-180 |
75 |

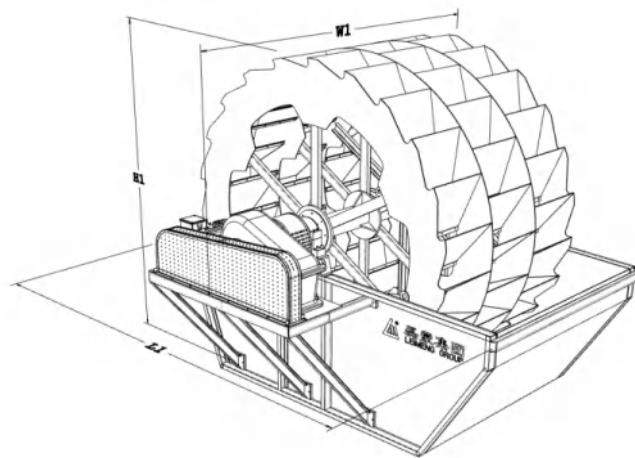

Specifications
|
Model |
Length L1 |
Width W1 |
Height H1 |
|---|---|---|---|
|
XSD2610 |
3510 |
2300 |
2780 |
|
XSD3016 |
4100 |
2670 |
3210 |
|
XSD3025 |
4100 |
4170 |
3210 |
|
XSD4020 |
4800 |
3510 |
4200 |
|
XSD4025 |
4800 |
4210 |
4200 |
|
XSD4525 |
5300 |
4300 |
4800 |
|
XSD5030 |
5900 |
4500 |
5300 |
