This series of products is a multi-layer, efficient new type vibrating screen. It adopts a cylinder-type eccentric shaft exciter and partial fast amplitude adjustment, specially designed for aggregate production lines, and can be used for grading in mining, coal preparation, mineral processing, building materials, electric power, and chemical departments.
1/2

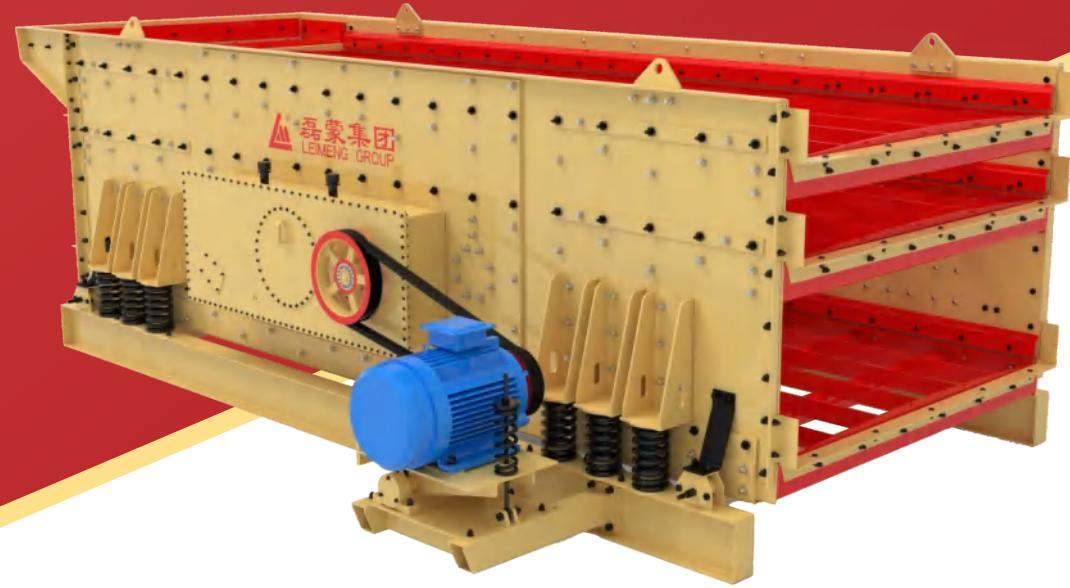

ZTS Series Triple-Shaft Elliptical Vibrating Screen
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Performance Parameters
|
Model |
Number of Screen Decks |
Screen Specification (mm x mm) |
Max. Feed Size (mm) |
Spindle Speed (r/min) |
Double Amplitude (mm) |
Installation Angle (°) |
Processing Capacity (t/h) |
Motor Power (kW) |
|---|---|---|---|---|---|---|---|---|
|
2ZTS1550 |
2 |
1500X5000 |
120 |
680 |
12-15 |
0-5 |
75-300 |
18.5 |
|
2ZTS2060 |
2 |
2000X6000 |
120 |
680 |
12-15 |
0-5 |
100-400 |
22 |
|
2ZTS2260 |
2 |
2200X6000 |
150 |
680 |
12-15 |
0-5 |
110-440 |
30 |
|
2ZTS2460 |
2 |
2400X6000 |
150 |
680 |
12-15 |
0-5 |
120-480 |
30 |
|
3ZTS1550 |
3 |
1500X5000 |
120 |
680 |
12-15 |
0-5 |
70-270 |
22 |
|
3ZTS2060 |
3 |
2000X6000 |
120 |
680 |
12-15 |
0-5 |
90-360 |
37 |
|
3ZTS2260 |
3 |
2200X6000 |
150 |
680 |
12-15 |
0-5 |
100-390 |
37 |
|
3ZTS2460 |
3 |
2400X6000 |
150 |
680 |
12-15 |
0-5 |
110-430 |
37 |
|
4ZTS2060 |
4 |
2000X6000 |
150 |
680 |
12-15 |
0-5 |
100-400 |
37 |
Specification Parameters
|
Model |
Length L1 |
Width W1 |
Height H1 |
|---|---|---|---|
|
2ZTS1550 |
5870 |
2360 |
1470 |
|
2ZTS2060 |
6870 |
2860 |
1565 |
|
2ZTS2260 |
6870 |
3060 |
1565 |
|
2ZTS2460 |
6870 |
3260 |
1565 |
|
3ZTS1550 |
5870 |
2360 |
1870 |
|
3ZTS2060 |
6870 |
2860 |
2010 |
|
3ZTS2260 |
6870 |
3060 |
2010 |
|
3ZTS2460 |
6870 |
3260 |
2010 |
|
4ZTS2060 |
6870 |
2860 |
2300 |
