The motion trajectory of this series of products is circular, specifically designed for aggregate production lines, and can also be used for product classification in coal preparation, mineral processing, building materials, power, and chemical industries.
1/2

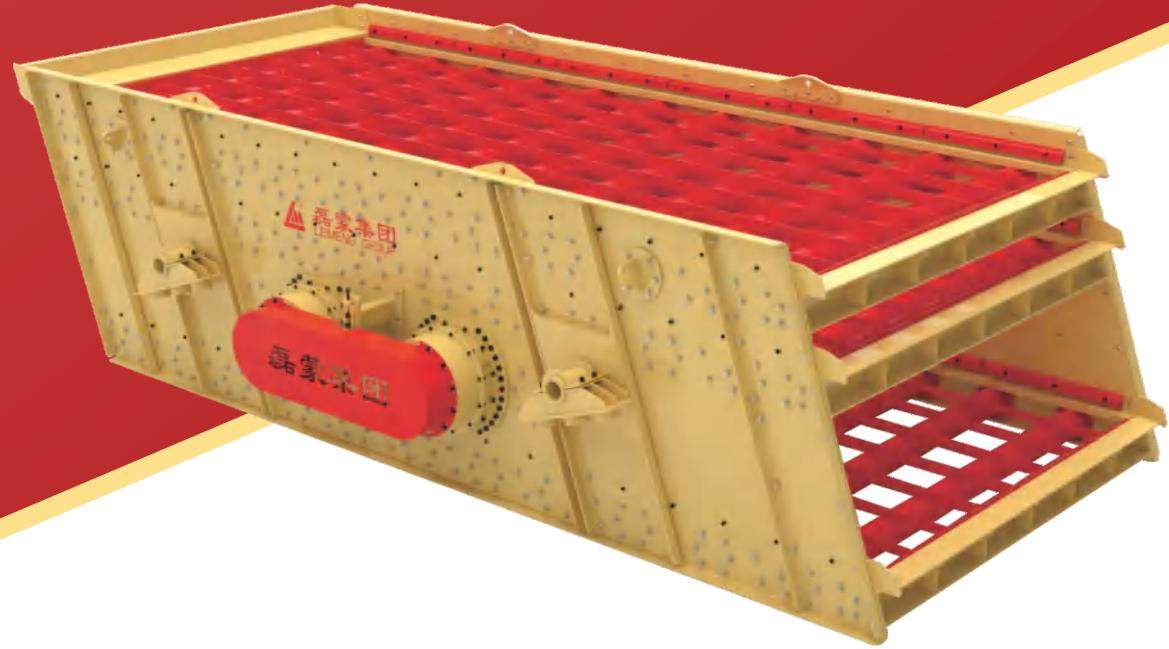

YKJ Series Vibrating Screen
Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
leimengjixie@leimengjixie.com
Product Introduction
Product Parameters
Performance Parameters
|
Model |
Number of Screen Decks |
Screen Size mmxmm |
Max. Feed Size mm |
Spindle Speed r/min |
Double Amplitude mm |
Installation Angle ° |
Processing Capacity t/h |
Motor Power kW |
Installation Dimensions mm |
|---|---|---|---|---|---|---|---|---|---|
|
2YKJ1860 |
2 |
1800X6000 |
250 |
820 |
8-10 |
20 |
50-300 |
18.5 |
6060X2520X3550 |
|
3YKJ1860 |
3 |
1800X6000 |
250 |
820 |
8-10 |
20 |
50-300 |
22 |
6060X2520X3980 |
|
2YKJ2060 |
2 |
2000X6000 |
250 |
820 |
8-10 |
20 |
100-400 |
18.5 |
6060X2720X3550 |
|
3YKJ2060 |
3 |
2000X6000 |
250 |
820 |
8-10 |
20 |
100-400 |
22 |
6060X2720X3980 |
|
2YKJ2260Z |
2 |
2200X6000 |
400 |
820 |
8-10 |
24 |
400-800 |
30 |
5890X2930X4450 |
|
2YKJ2460 |
2 |
2400X6000 |
300 |
820 |
8-10 |
20 |
150-600 |
22 |
6060X3120X3650 |
|
3YKJ2460 |
3 |
2400X6000 |
300 |
820 |
8-10 |
20 |
150-600 |
30 |
6060X3120X4080 |
|
2YKJ2070 |
2 |
2000X7000 |
300 |
820 |
8-10 |
23 |
200-480 |
22 |
6880X2760X4390 |
|
3YKJ2070 |
3 |
2000X7000 |
300 |
820 |
8-10 |
23 |
200-480 |
30 |
6880X2760X4820 |
|
2YKJ2270 |
2 |
2200X7000 |
300 |
820 |
8-10 |
23 |
200-550 |
22 |
6880X2960X4390 |
|
3YKJ2270 |
3 |
2200X7000 |
300 |
820 |
8-10 |
23 |
200-550 |
30 |
6880X2960X4820 |
|
2YKJ2570 |
2 |
2500X7000 |
300 |
820 |
8-10 |
23 |
250-650 |
30 |
6880X3260X4390 |
|
3YKJ2570 |
3 |
2500X7000 |
300 |
820 |
8-10 |
23 |
250-650 |
37 |
6880X3260X4820 |
|
2YKJ2665B |
2 |
2600X6500 |
300 |
820 |
8-10 |
23 |
280-680 |
30 |
6416X4288X3556 |
|
3YKJ2665B |
3 |
2600X6500 |
300 |
820 |
8-10 |
23 |
280-680 |
37 |
6414X4288X4133 |
|
2YKJ3070A |
2 |
3000X7000 |
300 |
820 |
8-10 |
23 |
300-800 |
22X2 |
6880X3760X4390 |
|
3YKJ3070A |
3 |
3000X7000 |
300 |
820 |
8-10 |
23 |
300-800 |
30X2 |
6880X3760X4820 |
|
3YKJ3075A |
3 |
3000X7500 |
300 |
820 |
8-10 |
23 |
300-800 |
30X2 |
7345X4830X5200 |
|
2YKJ3675B |
2 |
3600X7500 |
300 |
820 |
8-10 |
20 |
700-1000 |
37X2 |
7500X4830X4620 |
|
3YKJ3675B |
3 |
3600X7500 |
300 |
820 |
8-10 |
20 |
700-1000 |
45X2 |
7510X4830X5110 |
|
2YKJ3680B |
2 |
3600X8000 |
300 |
820 |
8-10 |
20 |
800-1100 |
37X2 |
9051X4822X4785 |
|
3YKJ3680B |
3 |
3600X8000 |
300 |
820 |
8-10 |
20 |
800-1100 |
45X2 |
9052X4822X5306 |
|
3YKJ40100B |
3 |
4000X10000 |
300 |
820 |
8-10 |
23 |
1200-1800 |
45X3 |
9700X6310X5720 |

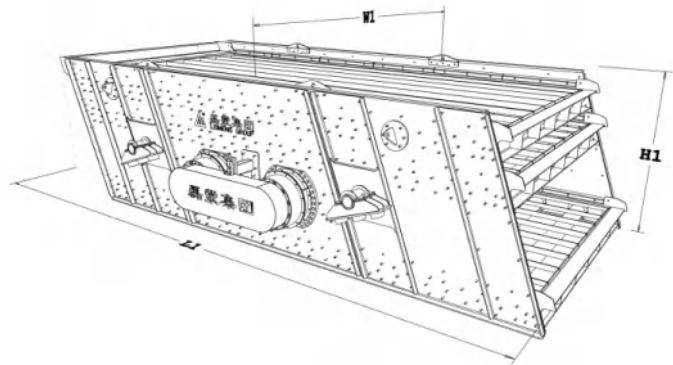

Specifications
|
Model |
Length L1 |
Width W1 |
Height H1 |
|---|---|---|---|
|
2YKJ1860 |
6780 |
2520 |
1450 |
|
3YKJ1860 |
6780 |
2520 |
1850 |
|
2YKJ2060 |
6780 |
2720 |
1450 |
|
3YKJ2060 |
6780 |
2720 |
1450 |
|
2YKJ2260Z |
7045 |
2950 |
1775 |
|
2YKJ2460 |
6780 |
2920 |
1450 |
|
3YKJ2460 |
6780 |
2920 |
1950 |
|
2YKJ2070 |
7970 |
2730 |
1670 |
|
3YKJ2070 |
8065 |
2730 |
1940 |
|
2YKJ2270 |
7970 |
2930 |
1670 |
|
3YKJ2270 |
8065 |
2930 |
1940 |
|
2YKJ2570 |
7970 |
3230 |
1670 |
|
3YKJ2570 |
8065 |
3230 |
1940 |
|
2YKJ2665B |
7560 |
3565 |
1845 |
|
3YKJ2665B |
7560 |
3565 |
2250 |
|
2YKJ3070A |
8030 |
3900 |
1666 |
|
3YKJ3070A |
8230 |
3900 |
2170 |
|
3YKJ3075A |
8700 |
3970 |
2080 |
|
2YKJ3675B |
8545 |
4830 |
1940 |
|
3YKJ3675B |
8725 |
4830 |
2430 |
|
2YKJ3680B |
9045 |
4830 |
1940 |
|
3YKJ3680B |
9225 |
4830 |
2430 |
|
3YKJ40100B |
11450 |
5350 |
2550 |
