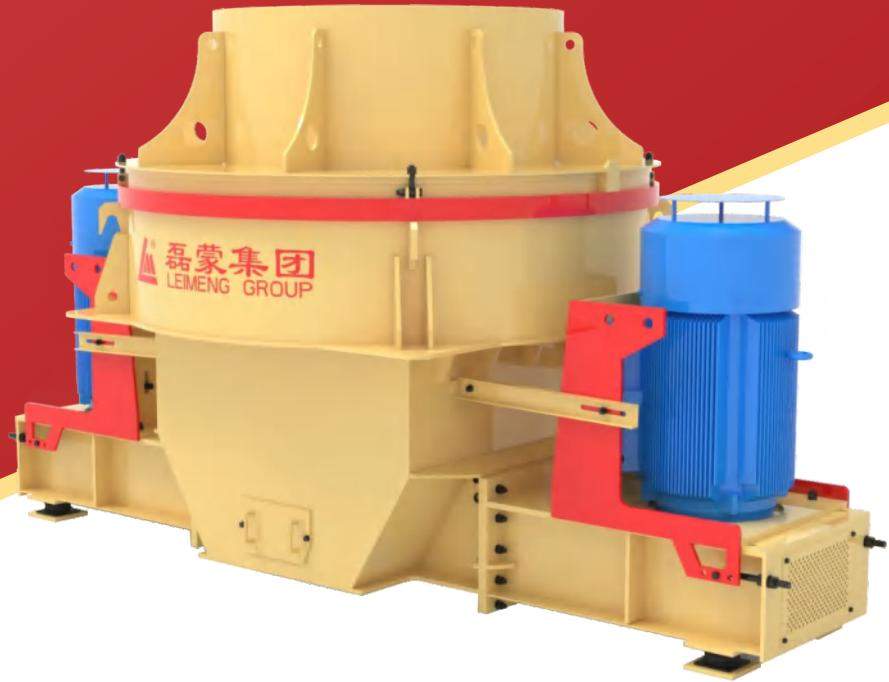

LM Series Vertical Shaft Impact Crusher

Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
Online Contact
Favorite
Product Introduction

This series of products is developed by our company based on years of research and development in mining machinery equipment, incorporating excellent crushing technology to create high-performance, low-energy-consumption equipment of superior quality. Its performance plays a significant role in various ore fine crushing equipment.

It features high reliability, convenient use, installation, and maintenance; multiple crushing forms (rock-on-rock, rock-on-iron) to meet different user crushing needs; a variety of components available for selection, with key components using international brands; suitability for crushing a wide range of materials, low operating and maintenance costs, good economic efficiency, energy saving, environmental protection, and no need for any additional devices. It is not only widely used for extremely hard materials but also applied in industries with vastly different material properties such as artificial sand making, pre-grinding cement, refractory materials, etc., for fine and ultra-fine crushing. Examples include granite, basalt, limestone, quartzite, gneiss, cement clinker, concrete aggregate, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, etc.

Product Parameters

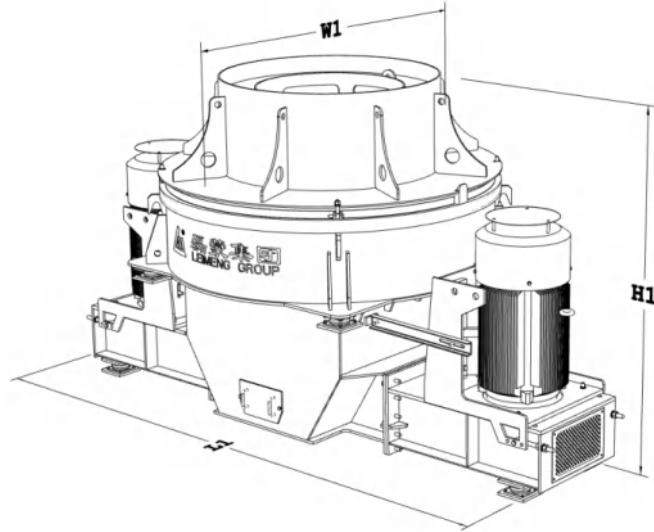

Specifications

Model Length L1 Width W1 Height H1
LM6000 2750 1970 2660
LM7000 3440 2180 2670
LM7500 4410 2180 2670
LM8000 4480 2540 2880
LM8500 4480 2540 2880
LM9000 4980 2540 2880
LM9500 4980 2540 2880
LM10000 4980 2540 2880

Performance Parameters

Model Max. Feed Size mm Linear Velocity m/s Processing Capacity t/h Motor Power kW Installation Dimensions mm
LM6000 40 60-89 53-240 160 3600X1970X3290
LM7000 40 60-89 80-430 250 3910X2180X3810
LM7500 40 60-89 100-450 132X2 5000X2180X3810
LM8000 40 60-89 188-520 160X2 5200X2540X3910
LM8500 40 60-89 230-550 200X2 5200X2540X3910
LM9000 40 60-89 275-600 250X2 5810X2540X3910
LM9500 40 60-89 290-650 280X2 5810X2540X3910
LM10000 40 60-89 320-720 315X2 5810X2540X3910
