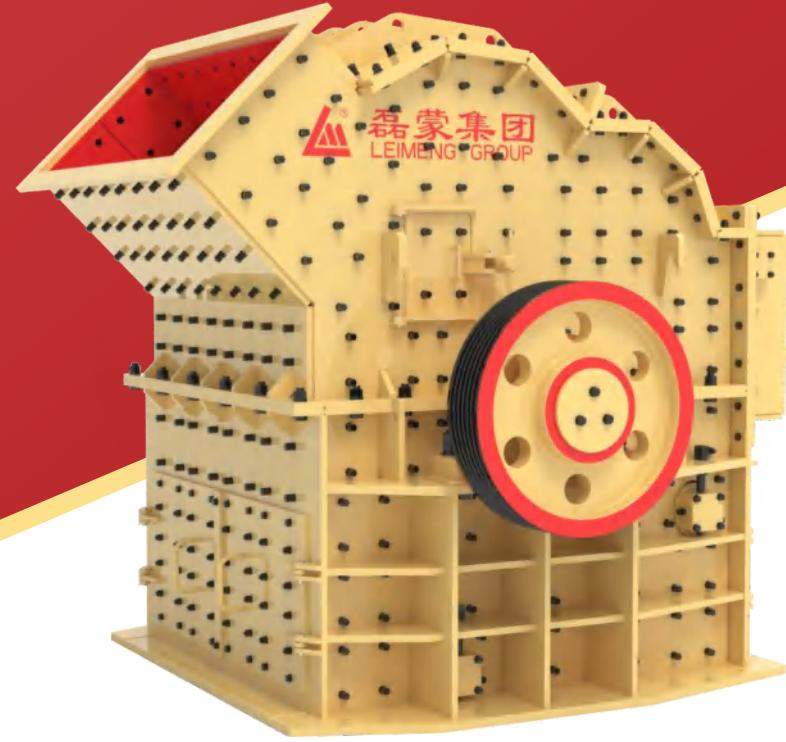

PCX Series High-Efficiency Sand Making Machine

Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
Online Contact
Favorite
Product Introduction

This series of products is a high-efficiency fine crushing equipment developed and produced using advanced fine crushing technology. It is widely suitable for the high-efficiency fine crushing and sand-making operations of medium and low hardness materials such as limestone, gypsum, and cement clinker. Adding this product in the process before the ball mill can significantly increase production efficiency. It features high sand-making efficiency and low energy consumption. The uniquely designed hammer head can be rotated to use four sides, resulting in a long service life, high utilization rate, and excellent performance.

Product Parameters

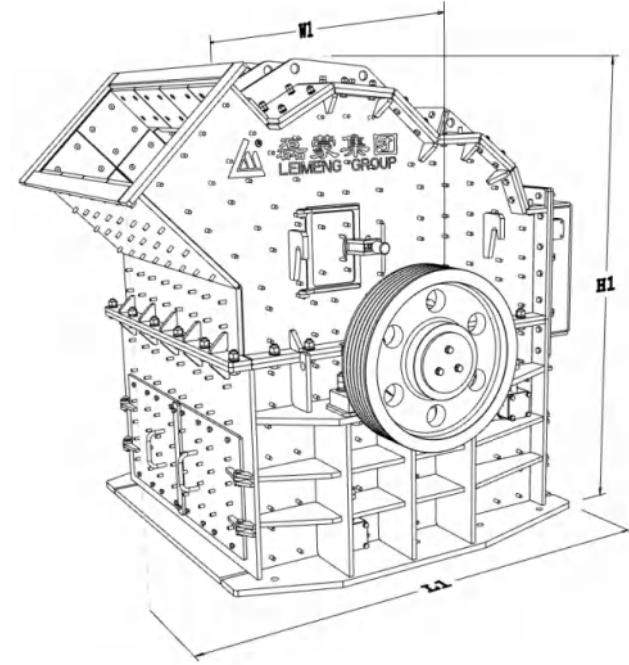

Specifications

Model

Length L1

Width W1

Height H1

PCX8040

1400

1510

1390

PCX8080

1400

1910

1390

PCX9010

1755

2180

1660

PCX1010

2140

2590

2025

PCX1212

2525

2870

2325

PCX1414

2550

3120

2670

PCX1616

2925

3565

2900

PCX1818

3125

3755

3150

Performance Parameters

Model

Max Feed Size (mm)

Average Output Size (mm)

Processing Capacity (t/h)

Motor Power (kW)

Cement Clinker

Limestone

PCX8040

≤120

0-10

15-20

20-25

37

PCX8080

≤120

0-10

25-30

30-40

45

PCX9010

≤120

0-10

45-50

50-55

75

PCX1010

≤150

0-10

50-60

60-70

90

PCX1212

≤150

0-10

90-100

90-110

132

PCX1414

≤150

0-10

110-150

120-160

200

PCX1616

≤180

0-10

170-210

210-260

250

PCX1818

≤180

0-10

250-270

280-310

315
