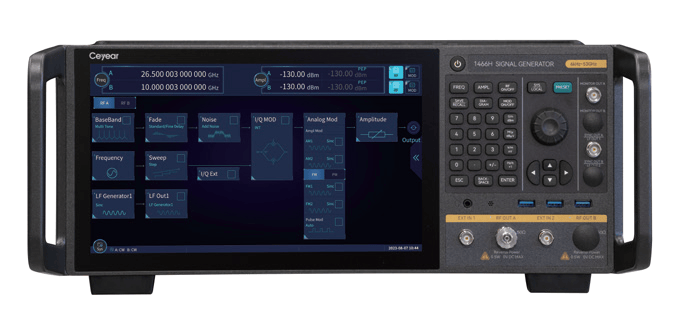

1466C/D/E/G/H/L/N/P-V Signal Generator

Frequency Range

6kHz~13GHz(1466C-V)
6kHz~45GHz(1466G-V)
6kHz~90GHz(1466N-V)

6kHz~20GHz(1466D-V)
6kHz~53GHz(1466H-V)
6kHz~110GHz(1466P-V)

6kHz~33GHz(1466E-V)
6kHz~67GHz(1466L-V)

SSB Phase Noise (Typ.)

-145dBc/Hz@10kHz offset at 1GHz Carrier
-132dBc/Hz@10kHz offset at 10GHz Carrier
-161dBc/Hz@30MHz offset at 20GHz Carrier

Internal Modulation Bandwidth

Maximum 2 GHz Modulation Bandwidth
Supports 5G NR, Bluetooth, WLAN, Radar Scene Signal Simulation

External Modulation Bandwidth

Maximum 5 GHz Modulation Bandwidth

EVM (Typ.)

EVM<0.4%(QPSK@2GHz Carrier)
<-55dBc@2GHz Carrier 5G NR ACPR
<-45dBc@42.5GHz Carrier 5G NR ACPR

Maximum Output Power (Typ.)

+27dBm@5GHz

+24dBm@20GHz

+25dBm@30GHz

+22dBm@60GHz

Channel Numbers

Maximum support 2 Channels, Supports multi-machine cascade, can provide solutions for MIMO, Beam forming test
