72.5kV-145kV Y-type Branch Joint

Type/Applications:

Branch joint: WYJJFG
Max.system voltage: 72.5kV, applicable to 150~1600mm²
Max.system voltage: 126kV, applicable to 240~1600mm²
Max.system voltage: 145kV, applicable to 240~1600mm²

Features:

• 1. Branch joint body is vacuum injection molded by thermo setting resin or insulated rubber, of which wholly dry construction prevents potential oil-leakage.
• 2. One-piece design and outer metal enclosure provides such properties as water-proofing, damp resistance and mechanical stress resistance to maintain branch joints' operation under various conditions.
• 3. Compact structure and small volume save its installation space. Installation available in cable well, cable duct or direct bury.
• 4. Wholly prefabricated in factory. No filler and insulated gas is required. Simply insert the prepared cable into the joint body while no maintenance is required during operation.
• 5. Type tested according to IEC 60840, GB/T11017.

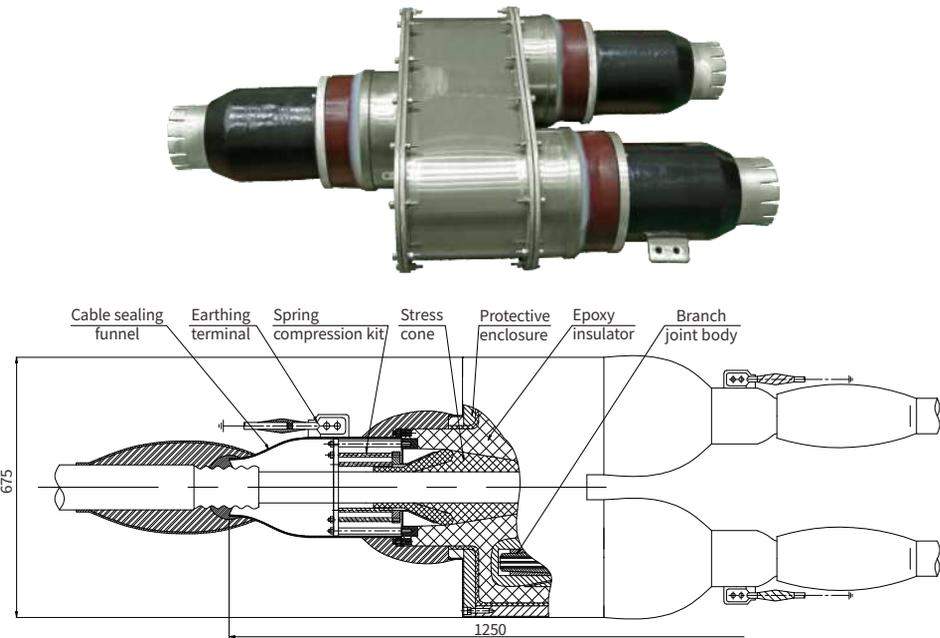

Structure Diagram

Notice When Ordering:

• 1.Cable configuration and the cross-sectional area of earth wire shall be submitted when ordering.
• 2.Feel free to contact our sales manager before ordering if you have any special requirements.
