RST Heat Shrink Termination for LV Cables

Name: RST Heat Shrink Termination for LV Cables
Availability: InStock

Negotiable

SHENZHEN WOER ELECTRIC TECHNOLOGY CO., LTD.

Located Region:

China

Address:

Room 301, Woer Industrial Plant, Building 6-1, Qingsong Road No. 53, Zhukeng Community, Longtian Street, Pingshan District, Shenzhen, China

Biz Consulting:

15814620079

E-mail:

inquiry1@woer.com

Online Contact

Favorite

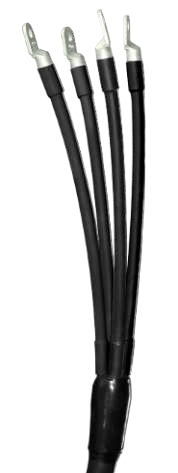

The terminations are designed for 1-, 2-, 3-, 4- and 5-core cables with or without armour. The terminations are also applicable to 3+1, 4+1 and 3+2 cables.

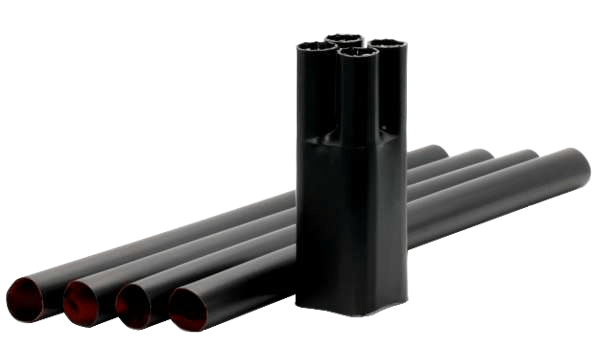

The cable crutch is sealed by a breakout inner coated with adhesive. Heat shrink insulation tubes seal between the cable lug and the bottom of the core insulation. For single core cables only an insulation tube is needed. All materials are resistant to UV and weathering.

Voltage	Cores	Cross Section/mm²	Kit No.
0.6/1 (1.2)kV	1,2,3,4,5	4-6 10-16 25-50 70-120 150-240 300-400 500	0.6/1kVRST-4(5,3,2)/(-1) 0.6/1kVRST-4(5,3,2)/0 0.6/1kVRST-4(5,3,2,1)/1 0.6/1kVRST-4(5,3,2,1)/2 0.6/1kVRST-4(5,3,2,1)/3 0.6/1kVRST-4(5,3,2,1)/4 0.6/1kVRST-4(3,2,1)/5

Note:
Solderless earth connection system for armoured cables is available on request.
Lugs and other accessories shall be ordered separately.
Terminations and components for other cable types are available on request.
