LGG162K 1P Meter

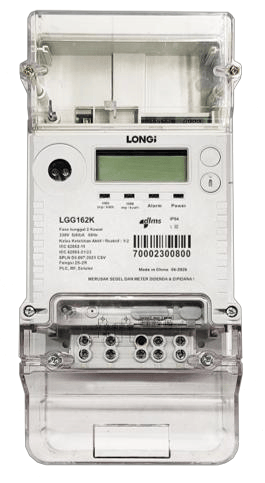

Name: LGG162K 1P Meter
Availability: InStock

Negotiable

Located Region:

China

Address:

No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia

Biz Consulting:

18099306469

E-mail:

hhasidier@gmail.com

Online Contact

Favorite

Single Phase Smart Energy Meter

Description	Value
Rated voltage	230V
Operating voltage range	50%Un~120%Un
Rated Current and Starting Current	5(60)A and 0.2%Ib
Rated frequency	50Hz
Pulse Constant	1000imp/kWh 1000imp/kvarh
Accuracy Class	Cl.1 for Active Cl.2 for Reactive
Power Consumption	Voltage circuit ≤1.5W or 5VA, Current circuit < 2VA
Battery and Life	Replaceable Lithium battery, life more than 15 years
Tropical working temperature	-40℃ to +70℃, Humidity is up to 95%
EMC Performance	Impulse voltage > 8KV, AC voltage > 4KV, Short circuit current > 3KA, Electrostatic Discharge > 8KV&15KV etc.
Protection class	IP54 comply with IEC60529 Insulation grade II
Housing material	Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering
Dimension	291.7mmX136mmX84mm
