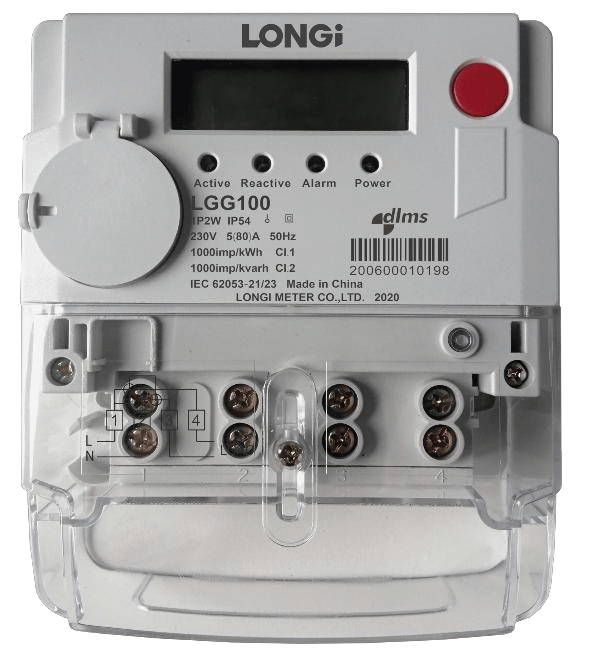

LGG100 1P Meter

Negotiable
LONGi Meter Co., Ltd.
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
Online Contact
Favorite
Product Introduction

Single Phase Smart Energy Meter

Product Parameters
Rated voltage 220V~240V
Operating voltage range 60%Un~130%Un
Rated Current and Starting Current 5(100)A,5(80)A,5(60)A and 0.4%Ib
Rated frequency 50Hz
Pulse Constant 1000imp/kWh
1000imp/kvarh
Accuracy Class Cl.1 for Active
Cl.2 for Reactive
Power Consumption Voltage circuit < 1W or 5VA, Current circuit < 0.2VA
Battery and Life Replaceable Lithium battery, life more than 15 years
Tropical working temperature -40°C to +70°C, Humidity is up to 95%
EMC Performance Impulse voltage > 8KV, AC voltage > 4KV, Short circuit current > 3KA, Electrostatic Discharge > 8KV&15KV etc.
Protection class IP54 comply with IEC60529
Insulation grade II
Housing material Polycarbonate with non-conductive, high impact, smooth finish, durable, non-flammable, UV stabilized, UV resistant and high resistance to weathering
Dimension 146mmX120mmX50mm
