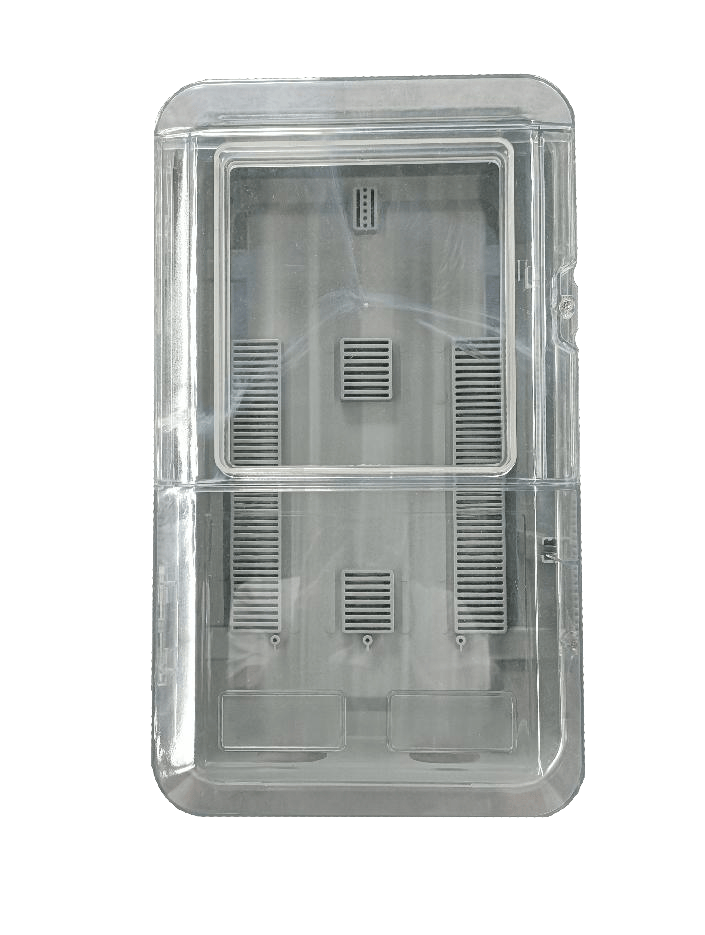

LGG631P 3P meter box

Negotiable
LONGi Meter Co., Ltd.
China
No.25 Guangming Road, Yinchuan (National Level) Economic and Technological Development Zone, Ningxia
18099306469
Online Contact
Favorite
Product Parameters
Description Value
Install Power Grid 220/380V~240/415V
Insulation Class Insulation Class II
Material Polycarbonate, Transparent cover
Thickness 2.5 mm
Power Cable Hole Holes with diameter 30 mm
Position 1
Seismic Capacity IK09
Fireproof Performance UL94 - V0
Flexible Installation Indoor/Outdoor
Wall mounting and Pole mounting capability
Suitable for all regular cable sizes
High Protection Level IP54, High level dust and water proof, Rust proof
High temperature resistance, Anti- corrosive
UV stability, Resistant against vibration, Anti flaming
Anti-tamper Meter box door lock
Meter box door sealing
Tropical working temperature -40°C to +70°C, Humidity is up to 95%
Lifetime Excellent aging resistance, life more than 20 Years
Dimension (W x H x D) 463mmx293mmx135mm
