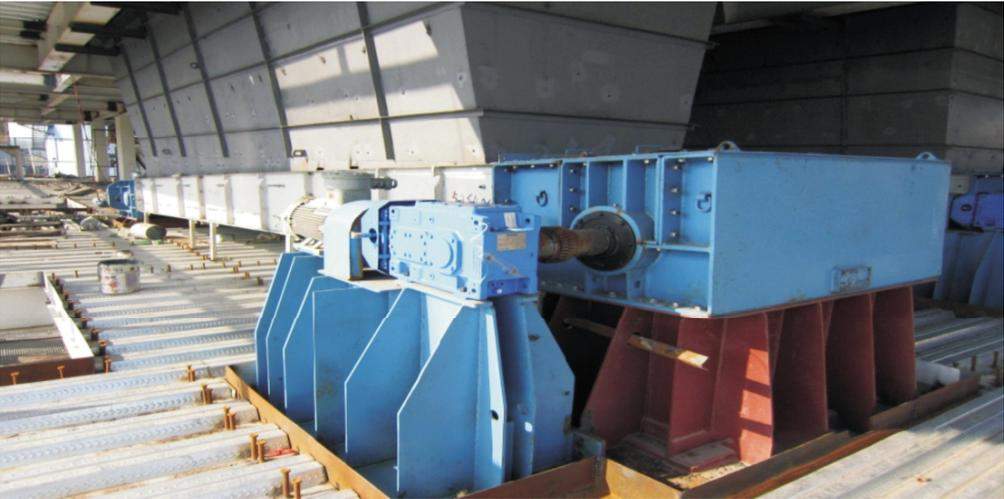

The new type bin-allocation scraper conveyor developed and manufactured by the company has a trough width of (600 ~ 2400) mm and a conveying capacity of (350 ~ 4500) tons/hour. It is widely used for conveying coal and various bulk materials in industries such as power generation, coal preparation, ports, mining, metallurgy, and chemicals. According to users' personalized customization needs, different specifications of chains, installed power, drive modes, unloading methods, and intelligent monitoring and automatic control systems can be configured to meet the requirements of high adaptability, high reliability, large capacity, and intelligence of the equipment.
Product Features
New integral frame-type left-right symmetrical head and tail, with high strength and good rigidity, which can meet the needs of installing drive devices on left and right sides, realizing convenient disassembly and assembly of the sprocket shaft group without disassembling the head.
Integral sliding adjustable tail ensures even load on the sprocket assembly and improves the service life of the sprocket shaft group; it can conveniently realize chain tension adjustment to ensure the chain is in good working condition; the specially designed coal return device and sprocket self-cleaning device can effectively prevent coal accumulation at the tail and timely remove debris夹 in the sprocket groove, ensuring normal meshing of the scraper chain.
New staggered overlapping structure middle trough adopts integral box-type structure, light weight, high strength, and good rigidity. Its staggered overlapping structure design ensures the scraper passes smoothly without jamming, effectively reducing no-load loss, reducing wear, and lowering noise.
According to load distribution, the sprocket shaft group structure is reasonably designed with higher and more stable bearing capacity; the new material sprocket and its manufacturing process independently developed and applied increase its service life by more than 50% compared with traditional material sprockets. The unique chain pocket design of the sprocket provides better dynamic meshing performance of the chain, and higher chain transmission efficiency and service life.
Optional integrated online monitoring and diagnosis system to realize online monitoring, analysis, and diagnosis of key parameters such as oil temperature, oil level, oil quality of the reducer and motor, cooling water temperature, water pressure, and vibration of key transmission system components, and realize real-time display, early warning, and transmission of equipment operation data.
