| Item | SZZ1350 Series |
|---|---|
| Conveying Capacity (t/h) | 4000 ~ 5000 |
| Design Length (m) | 30 ~ 85 |
| Installed Power (kW) | 315 ~ 1200 |
| Scraper Chain Speed (m/s) | 1.6 ~ 2.0 |
| Scraper Chain Type | Medium Double Chain |
| Chain Specification (mm) | φ38 × 126 Compact Chain φ38 × 137 Compact Chain φ42 × 146 Compact Chain φ48 × 152 Compact Chain |
| Middle Trough Structure | Box Type |
| Supporting Crusher | PLM4500 PLM5000 |
| Supporting Self-Moving System | MY1200 |
| Supporting Belt Self-Moving Tail | DWZY1400 DWZY1600 |
1/1

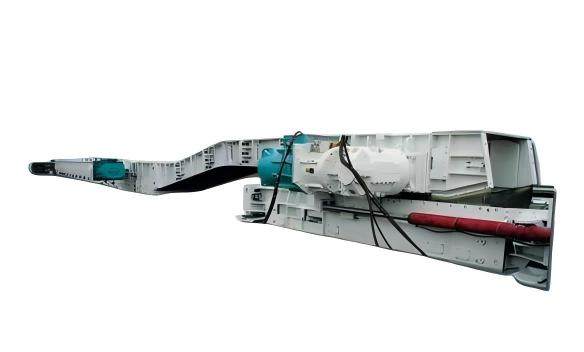

SZZ1350 Series Transfer Machine
Negotiable
China
No.1, Jingong Road, Dawukou District, Shizuishan City, Ningxia
0952-2174334
tdbnjt@163.com
Product Parameters
