QSFP28 100G 500m 100GBASE-DR1 PAM4 DDM Transceiver
QFP-PM31HG-02DC is a transceiver module designed for 2 km optical communication applications, It can convert 4-channel 25.78125 Gbit/s electrical data to 1-channel 106.25 Gbit/s optical signals.And convert 1 channel 106.25 Gbit/s optical signals to 4-channel output electrical data on the receiver side. t is intended for the service with single mode fiber in 100Gb/s high speed data communications. The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector.
1/2

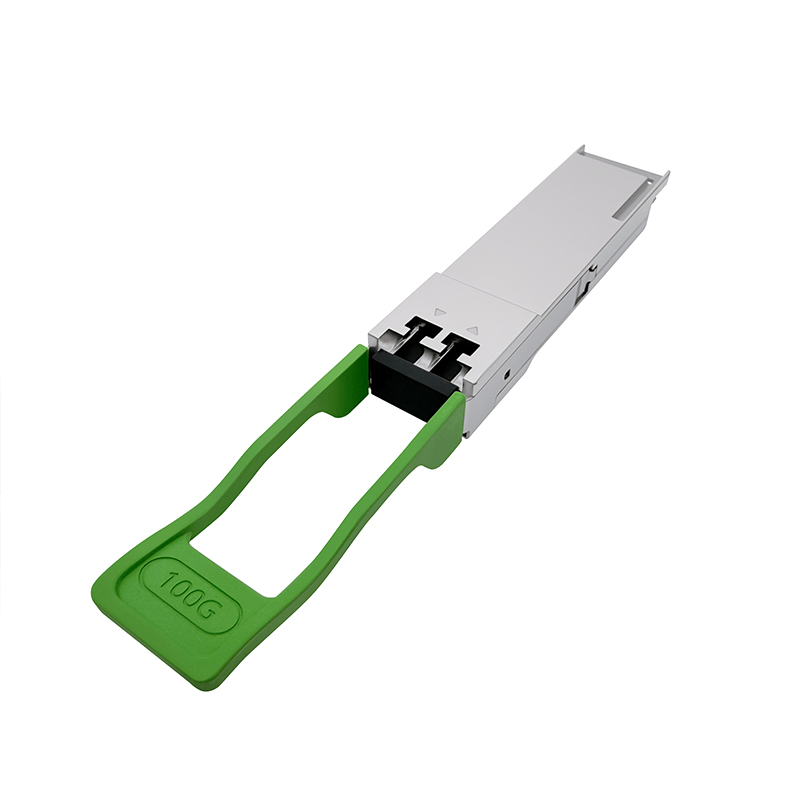

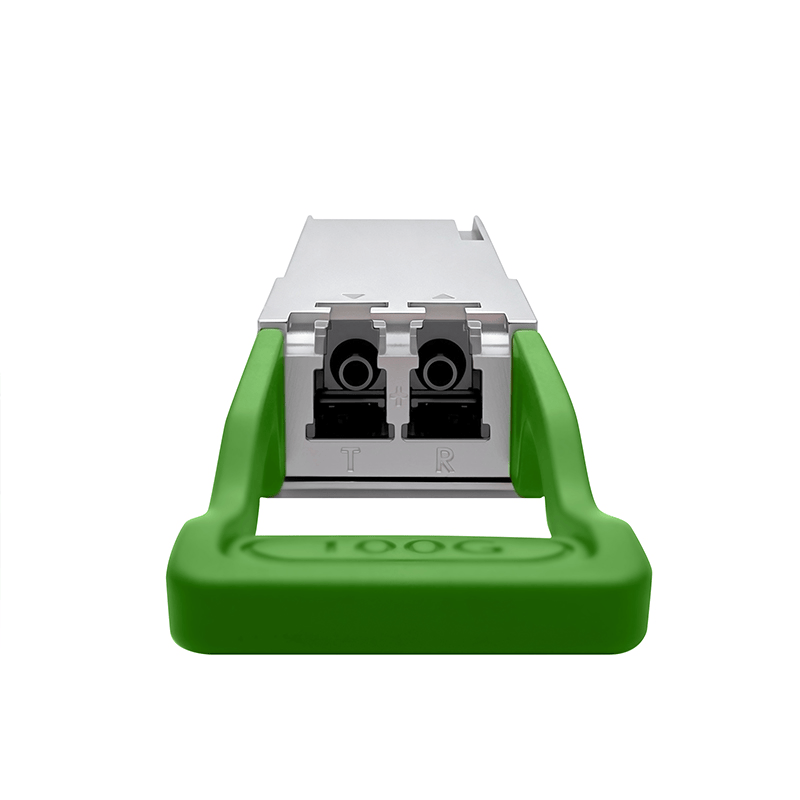

100GBASE-FR1 QSFP28 100G 2km Single Lambda Transceiver
EXW
$105.00-115.00 /1
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
sales@fibertoptech.com
Product Introduction
Technical Parameters
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-PM31HG-02DC |
| Transceiver Type | FR1 | Reach | 2km |
| Wavelength | 1311nm | Form Type | QSFP28 |
| Speed Description | 100G | Media | SMF |
| Connector | Duplex LC | Extinction Ratio | ＞3.5 dB |
| TX Power | -2.4 ~ 4 dBm | Receiver Sensitivity | < Max (-4.5, -5.9 + TECQ) dBm |
| Applications |
Data Center |
Environment |
Operating:0 to 70℃ |
