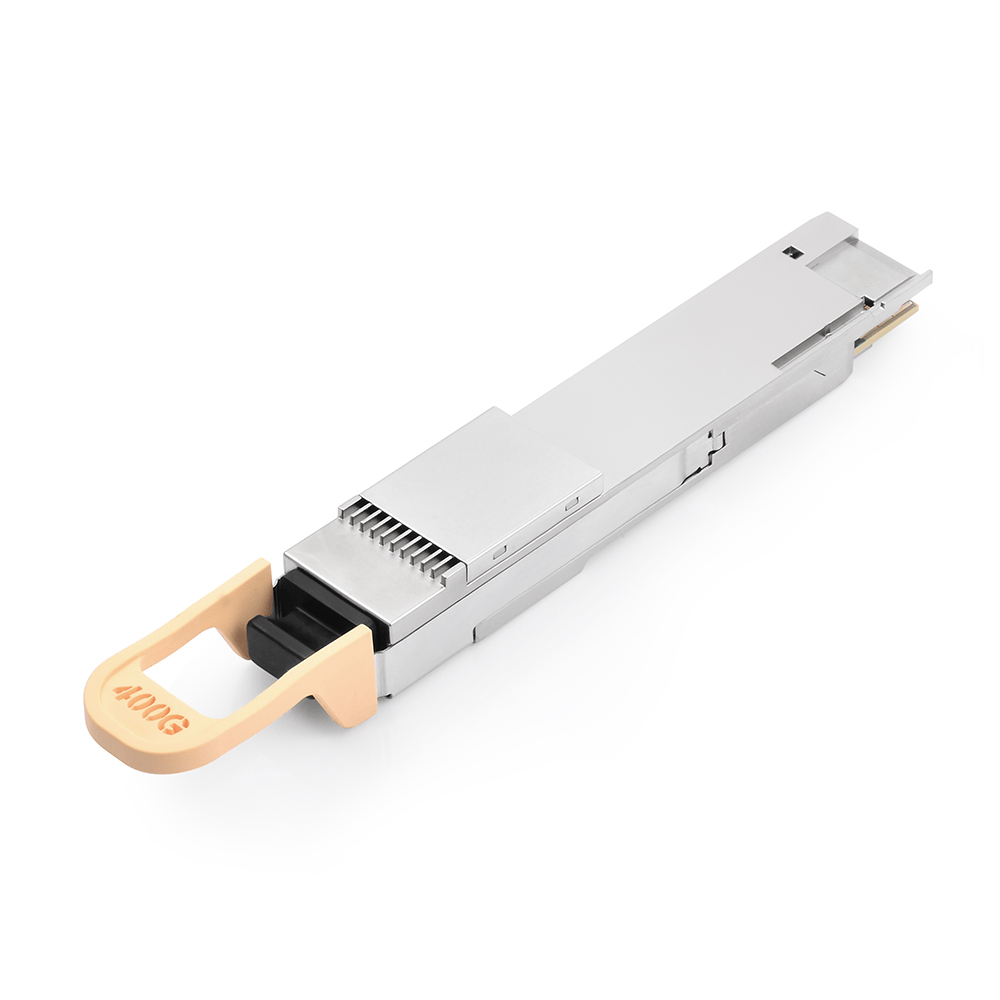

400G SR8 QSFP-DD MMF 850nm 100m MPO DOM Transceiver
QSFP-DD 400G 100M Optical transceiver for 8 x 26.56GBaud optical links.It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.
1/1
QSFP-DD 400GBASE-SR8 850nm 100m Transceiver
EXW
$132.00-142.00 /1
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
sales@fibertoptech.com
Product Introduction
Technical Parameters
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QDD-MM85QG-SR8C |
| Transceiver Type | SR8 | Reach | 100m |
| Wavelength |
850nm |
Form Type | QSFP-DD |
| Speed Description | 400G | Media | MMF |
| Connector | MPO-16 | Extinction Ratio | > 3.0 dB |
| TX Power | -6.5 ~ 4.0 dBm | Receiver Sensitivity | < -6.6 dBm |
| Applications |
High performance computing interconnect Data center |
Environment |
Operating:0 to 70°C |
