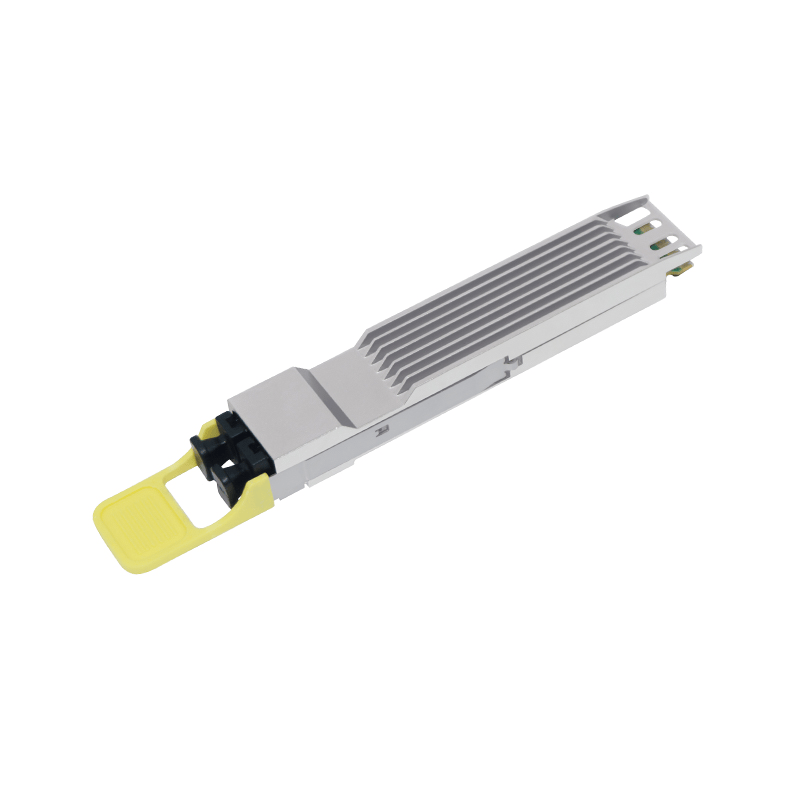

800GBASE-DR8 OSFP 800G DR8 500m Transceiver

EXW
$515.00-525.00 /1
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
Online Contact
Favorite
Product Introduction

800GBASE-DR8 OSFP 800G DR8 500m Transceiver(SMF, 800Gbps, 1310nm, 500m, MPO12/APC, DOM)

800GBASE-DR8 OSFP Optical Transceiver | 500m SMF transmission (MPO-12/APC connectors) | 800GBASE Ethernet full throughput. Compliant with IEEE P802.3ck/IEEE 802.3cu/OSFP MSA, featuring built-in DDM for real-time parameter monitoring. Perfect for data centers, Intelligent Computing Center, AI, 800G Ethernet, and breakout scenarios (2×400G DR4 / 8×100G DR1).

Technical Parameters

Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) OFP-SM31EG-DR8CD
Transceiver Type DR8 Reach 500m
Wavelength 1311nm Form Type OSFP
Speed Description 800G Media Simple mode
Connector MPO-12 Extinction Ratio > 3.5 dB
TX Power -2.9 ~ 4 dBm Receiver Sensitivity < -4.4 dBm
Applications

800GBASE-DR8 800G Ethernet,

Perfect for data centers,

Intelligent Computing Center,

AI, 800G Ethernet

Environment

Operating: 0°C to 70°C
