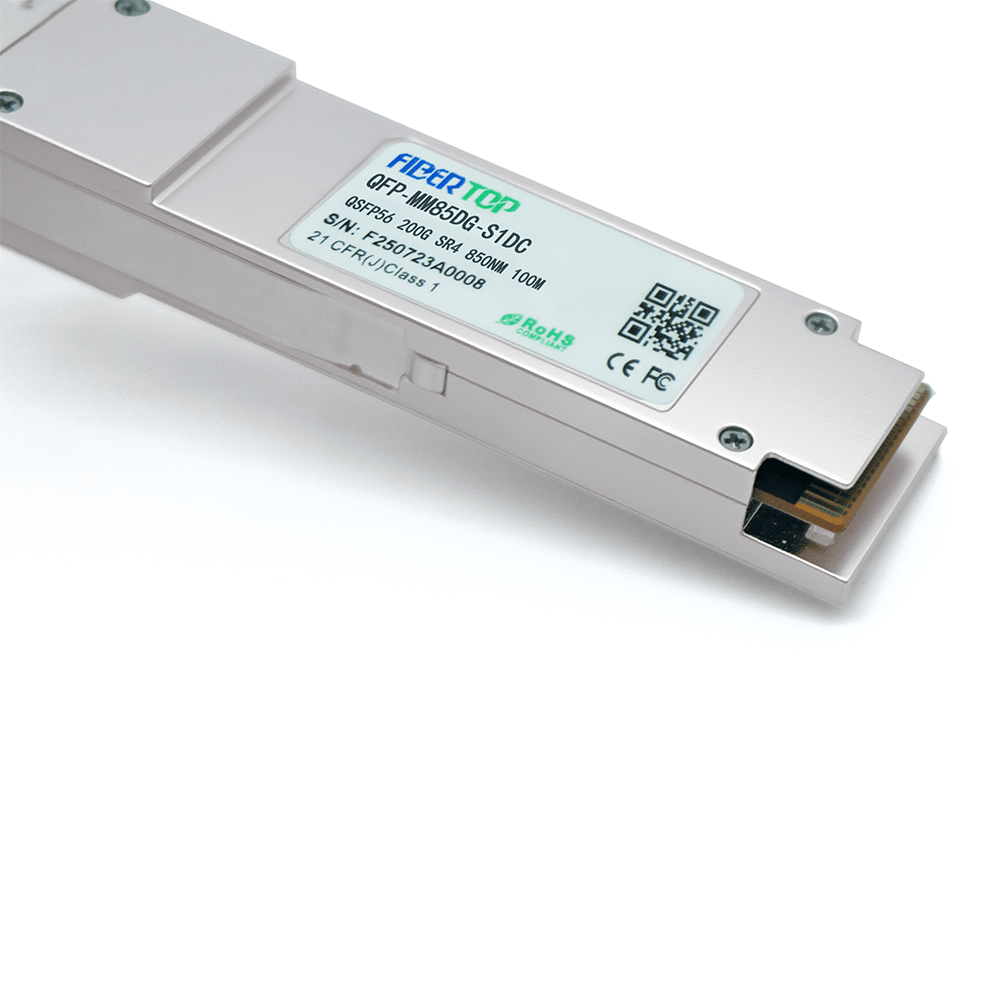

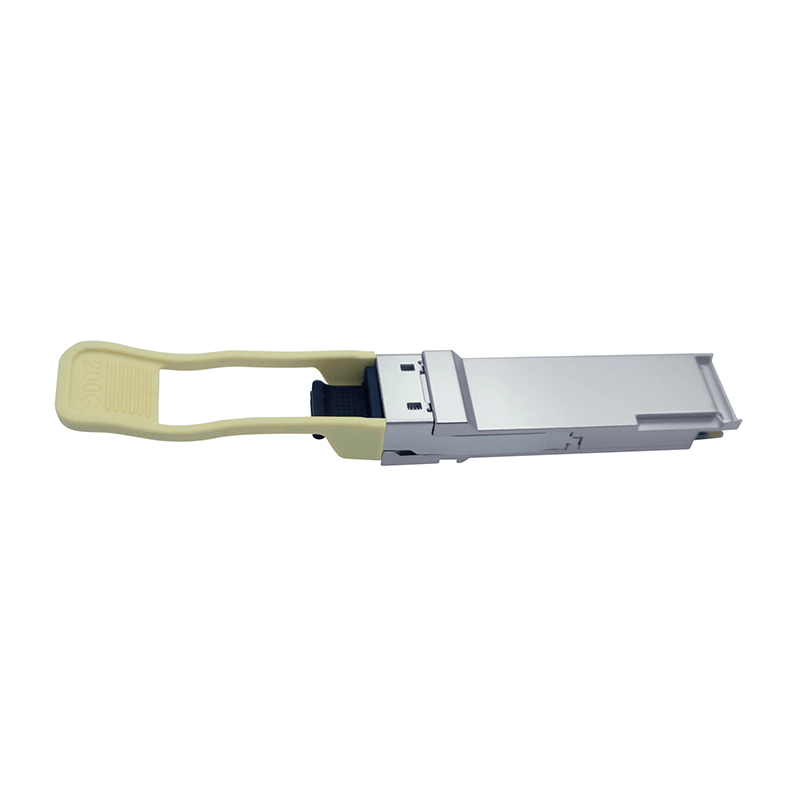

200GBASE-SR4 QSFP56 850nm 100m MPO Optical Transceiver

EXW
$86.00-96.00 /1
Shen Zhen FIBERTOP Technology Co., Ltd.
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
Online Contact
Favorite

Product Introduction

QSFP56 200G SR4 850nm 100m MPO Optical Transceiver Module



The 200G QSFP56 SR4 transceivers are high performance, cost effective I/O solutions for LAN,  HPC and SAN. The high speed transceivers meet and exceed 200G Ethernet, InfiniBand HDR and temperature requirements for performance and reliability. The transceivers are compliant with SFF-8636 specifications and provide connectivity between devices using QSFP56 ports.

Technical Parameters

Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) QFP-MM85DG-S1DC
Transceiver Type SR4 Reach 100m
Wavelength 850nm Form Type QSFP56
Speed Description 200G Media MMF
Connector MPO-12 Extinction Ratio > 3.0 dB
TX Power -6.5 ~ +4 dBm Receiver Sensitivity < Max (-6.5, -7.9 + TECQ) dBm
Applications

200GBASE-SR4 Ethernet

 Environment

Operating: 0 to 70°C
