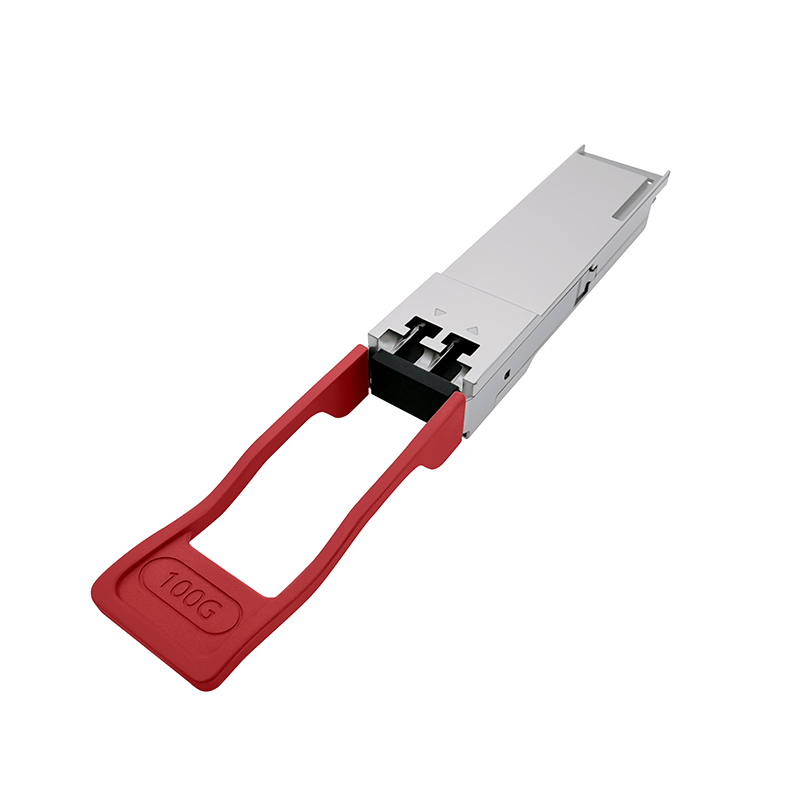

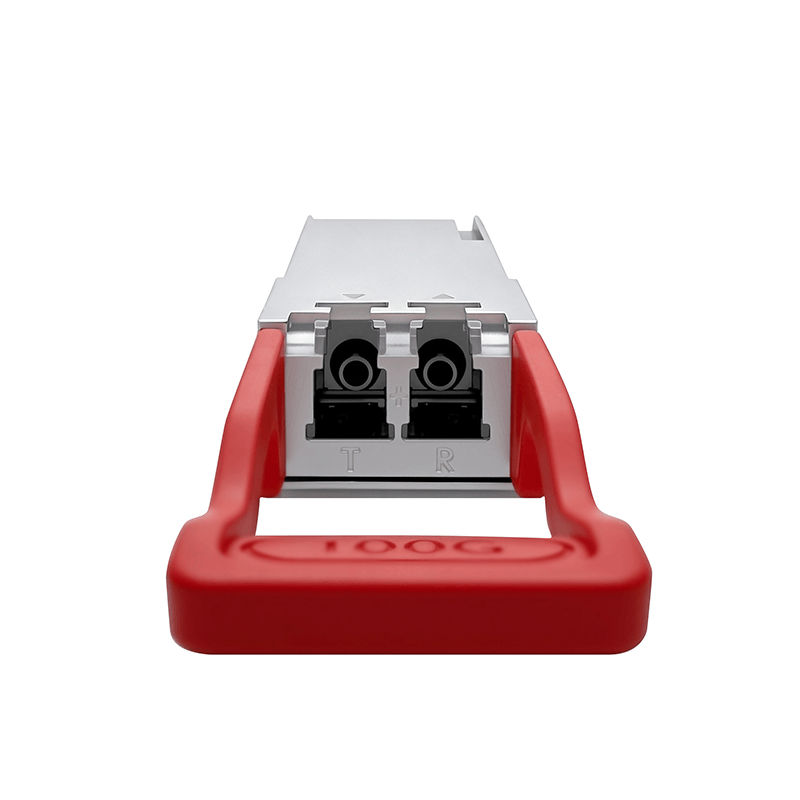

100GBASE-ER1 QSFP28 100G 30km Single Mode Transceiver

EXW
$384.00-385.00 /1
Shen Zhen FIBERTOP Technology Co., Ltd.
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
Online Contact
Favorite
Product Introduction

QSFP28 100G 30km 100GBASE-ER1 Single Mode Transceiver

The 100G QSFP28 ER1 is designed for 30km optical communication applications. It is intended for the service with single mode fiber in 100Gb/s high speed data communications. The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector.
Technical Parameters

Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) QFP-PM31HG-30DC
Transceiver Type ER1 Reach 30km
Wavelength 1311nm Form Type OSFP28
Speed Description 100G Media SMF
Connector Duplex LC Extinction Ratio > 5 dB
TX Power 0 ~ 5.6 dBm Receiver Sensitivity < Max (-12.5, -13.9 + TECQ) dBm
Applications Data center
100 Gigabit Ethernet		 Environment

Operating: 0°C to 70°C
