This product is a 200Gb/s transceiver module designed for 2km optical communication applications. The design is compliant to IEEE802.3bs 200GBASE-FR4 standard. The module converts 4 inputs channels (ch) of 50Gb/s (PAM4) electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 200Gb/s(PAM4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PAM4) input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
1/1

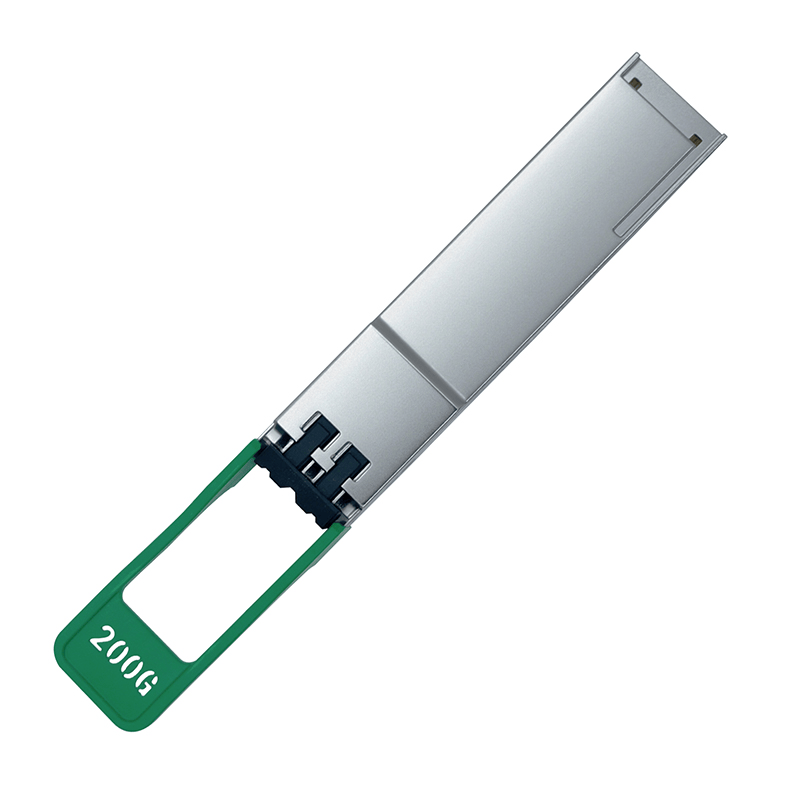

200GBASE-FR4 QSFP56 200G 2km Transceiver
EXW
$200.00-210.00 /1
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
sales@fibertoptech.com
Product Introduction
Technical Parameters
Technical Specification
| Compatible OEM | FIBERTOP | FIBERTOP Part Number(s) | QFP-CW31DG-02DC |
| Transceiver Type | CWDM4 | Reach | 2km |
| Wavelength |
1264.5~1277.5 |
Form Type | QSFP56 |
| Speed Description | 200G | Media | SMF |
| Connector | Duplex LC | Extinction Ratio | > 3.5 dB |
| TX Power | -4.2 ~ 4.7 dBm | Receiver Sensitivity | < -6 dBm |
| Applications |
200GBASE-SR4 Ethernet 200G InfiniBand HDR systems Data Centers |
Environment |
Operating: 0°C to 70°C |
