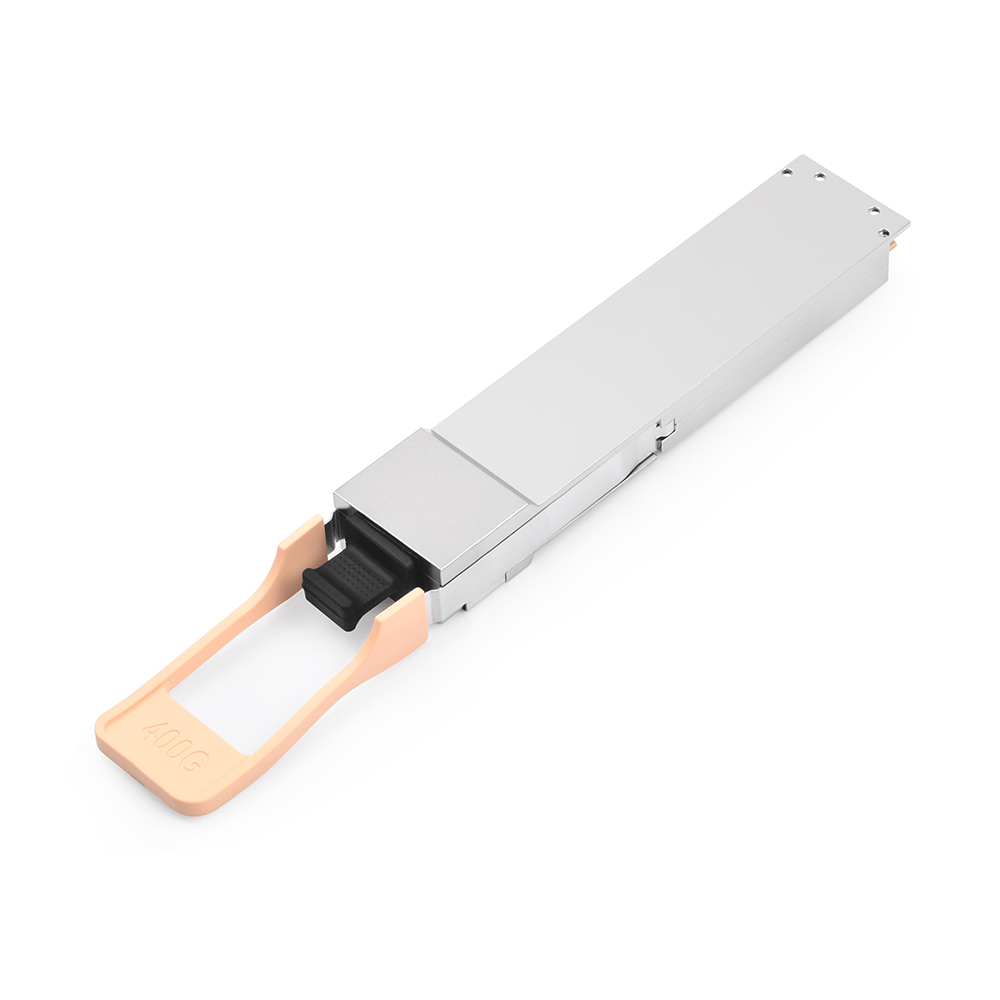

OSFP-400G-SR4 100m Transceiver

EXW
$354.00-364.00 /1
China
3/F, Block 3, Jia'an Science and Technology Park, No. 1 Liuxian 1st Road, Bao'an District 67
+8613316498100
+8613316498100
Online Contact
Favorite
Product Introduction

OSFP 400G SR4 Multimode 850nm 100m Optical Transceiver

This OSFP 400GBASE-SR4 optical module is designed for 100m (Host FEC required and OM4 fiber) optical communication applications. It converts 4-ch of 100Gb/s (PAM4) electrical data to 4-ch of parallel optical signals. This optical module with an MTP/MPO-12 fiber interface.
Technical Parameters

Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) OFP-MM85QG-SR4C
Transceiver Type SR4 Reach 100m
Wavelength 850nm Form Type OSFP
Speed Description 400G Media /
Connector MPO  Extinction Ratio 2.5 dB
TX Power

-4.6 ~ 4 dBm

Receiver Sensitivity < Max (-4.6, -6.4 + TECQ) dBm
 Applications

400GBASE-SR4 400G Ethernet

Environment

Operating: 0 to 70°C
