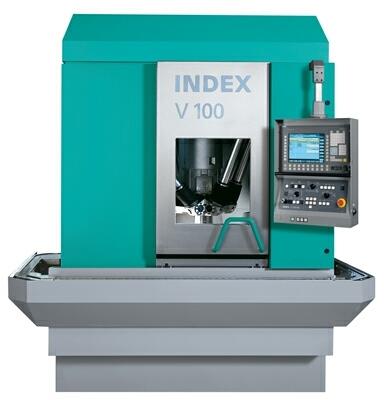

Vertical Turning Centers V100

Compact and highly precise vertical turning center 1 / 1Simple, fast and cost effective tool changing due to 3-dimensionsional movement of the headstock Easy integration of all technologies: Turning, milling, laser harden......Compact and highly precise vertical turning center 1 / 1Simple, fast and cost effective tool changing due to 3-dimensionsional movement of the headstock Easy integration of all technologies: Turning, milling, laser hardening, laser welding, grinding, assembling 8 to 12 tool stations on mounting plates, fixed or driven Extremely short idle times due to new tripod concept: 1g acceleration and rapid movement up to 60 m/min The construction1 / 1 The parallel kinematics of the V100 The machine has a completely thermallysymmetric design regarding the machine base as well as the headstock. The rigidity of the bar kinematics is far higher than that of the traditional compound slide. This leads to remarkable improvement of surface quality and tolerances, especially when hard turning. The freely moveable pick-up spindle performs all movements with the workpiece, during processing and tool changing. Movements in all 3 dimensions simplify the workpiece transfer, making it a speedy and low-cost procedure. Due to the construction principle of parallel kinematics the Y axis is part of the basic version of V100. View into the work area1 / 7 Freely accessible work area with a totally variable design The freely accessible work area with a totally variable design has a pick-up spindle that is freely moveable in all 3 dimensions. The spindle reaches every point in the defined work area with the known X, Y and Z-axes. The V100 is especially suitable for employing additional attachments like high frequency spindles, laser devices, grinding units.
