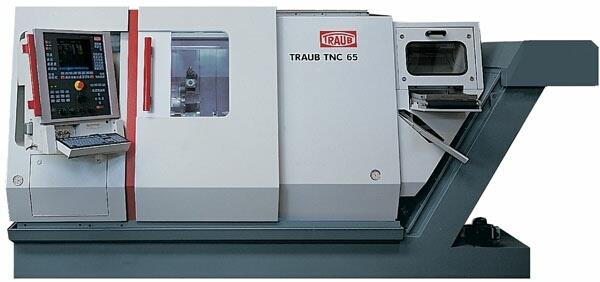

Turn-Mill Centers TNC65/42

the TNC65/42 TRAUB offers entry into modern turn-mill machining. The main and counter spindles are available with a 42 mm or 65 mm bar capacity. The maximum configuration level has 2 turrets and 8 axes.1 / 1Up to 8 axes f......the TNC65/42 TRAUB offers entry into modern turn-mill machining. The main and counter spindles are available with a 42 mm or 65 mm bar capacity. The maximum configuration level has 2 turrets and 8 axes.1 / 1Up to 8 axes for the most demanding production requirements Main and counter spindle for complete machining Two tool carriers with 12 tool reception bores each Highly accurate positioning of the tool holders Individual tool drive for all turret stations Arrangement of turret tools for machining operations at main and counter spindles C-axis for main and counter spindle Y-axis for upper turret Connection with bar loading magazine or handling system The kinematics1 / 1The TNC65/42 will accept bar material up to 65 mm and chucks up to 175 mm. As a result of the live tools and optional Y- axis, and the large number of tool stations, even complex parts can be produced in a single step process. TRAUB scores added points during setup, due to the computer assisted interference check software. The complete work area is filed in the control as a 3-D graphics model, including all machine data, so that the programmer can focus strictly on the machining process. In addition the control offers the capability to optimize other programs while the machine is running. View into the work area1 / 4 The solid machine construction assures the use of large-sized tools The TNC65/42 convinced with rigidity, stiffness and the tremendous Z- axes drive force of up to 8,000 N. With the innovative TX8i control system, featuring three independent internal systems, it is possible to have three tools in cut simultaneously. The result is a significant cycle time reduction and increased productivity. If the lower turret performs a turning operation on the main spindle, in addition, a drilling operation can be performed on main and counter spindle. Furthermore the CNC performance package provides additional idle time savings because of reduced control processing times. Not to forget the TRAUB trademark, the Automatic Tool Control system, ATC is in series. It allows optical tool measuring in the work area. Tool offset data is transferred on line directly into the control, and tools are quickly measured, and incorporated into the machine. The TNC65/42 therefore expands its capability and increases its flexibility. This means: Both turrets can work on both the main and counter spindle. With lot sizes of 1000 or more, the setup and productivity advantages have a substantial productivity and cost benefit.
