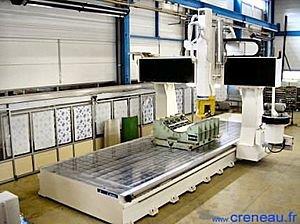

CRENO TF UGV 5 AXIS High Speed Machining Centre with Fixed Table

LE CRENEAU INDUSTRIEL Construction de centres dusinage commande numrique CRENO TF UGV 5 AXIS High Speed Machining Centre with Fixed Table For long components CRENO UGV 5 AXIS machines are generally designed with a fixed t......LE CRENEAU INDUSTRIEL Construction de centres dusinage commande numrique CRENO TF UGV 5 AXIS High Speed Machining Centre with Fixed Table For long components CRENO UGV 5 AXIS machines are generally designed with a fixed table and a moving gantry.A longer table allows machining in pendulum mode two short pieces (loading and unloading on one side during machining on the other side).The steel table is fitted with a vacuum pump to clamp pieces or fixtures. Some taped holes and locating allow also mechanical fixation.Standard axis lengths strokes vary from 4.000 to 22.000 mm in X, 1.000 to 3.300 mm in Y, and 400 to 2.000 mm in Z. Special larger versions have already been delivered.Feed speeds vary from 20 to 40 m/mn depending on the machine model and size.The moving gantry is put into motion thanks to racks and preloaded pinions and two brushless motor-reducers without any backlash.The Y and Z axis drive consists of ball screws and CNC motors. Accurate guiding is ensured by preloaded rollers. All moving parts are protected against dust and are lubricated automatically.A large range of high speed spindles are available regarding different applications. Spindle power 15 27- 42 KW - Maximal speed from 10.000 rpm up to 40.000 rpm dependant on application.A static frequency inverter enables an infinitely speed variation.The tool magazine is of easy access and accommodates 16 tools (or more as an option).These CRENO centres are particularly well suited for the high speed machining of composite materials, aluminium, sandwich panels, plastic materials, electrical insulating materials, etc. The numerical control, which is located in a closed and air-conditioned booth, is a NUM AXIUM POWER or a SIEMENS 840D which includes many options for easier high speed machining. Other CNC controls can be fitted. The 5 Axis CAD-CAM CRENO post-processor allows easy programming without any risks for 5 axis machining (moulding or contouring) with graphic display. More information...
