5-axis cnc universal profile machining center

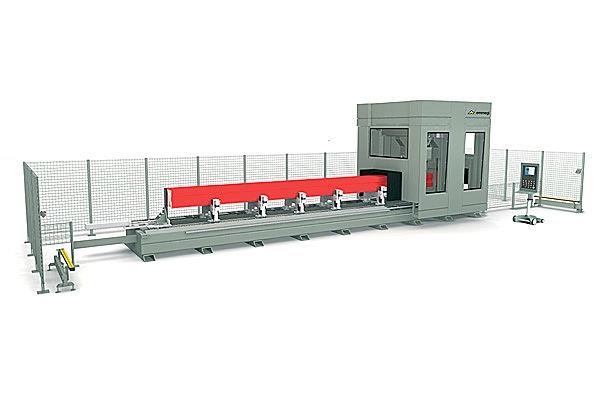

planet k30 5-axis cnc machining centre with mobile gantry, designed for milling, drilling, threadcutting and slotting operations on bars or workpieces made of aluminium, pvc, light alloys in general and steel, with sectio......planet k30 5-axis cnc machining centre with mobile gantry, designed for milling, drilling, threadcutting and slotting operations on bars or workpieces made of aluminium, pvc, light alloys in general and steel, with section up to 400 x 400 mm. behind the column there is provision (optional) for installing a cutting unit with blade dia. 550 mm, serving for making the separation cuts directly on the unmachined bar. the high power (30 kw si) electro-spindle with hsk63a toolholder, allows performing the various machining operations including heavy duty ones. the 16-place rotary disc tool magazine (n/c axis) can also contain angle machining heads for machining on the bottom face. a blade tool dia. 600 mm is seated in a special extra place. the machine can be used in double mode for minimizing machine downtimes during workpiece loading/unloading. it is also possible to machine workpieces having different codes and machining operations between the two work areas.
