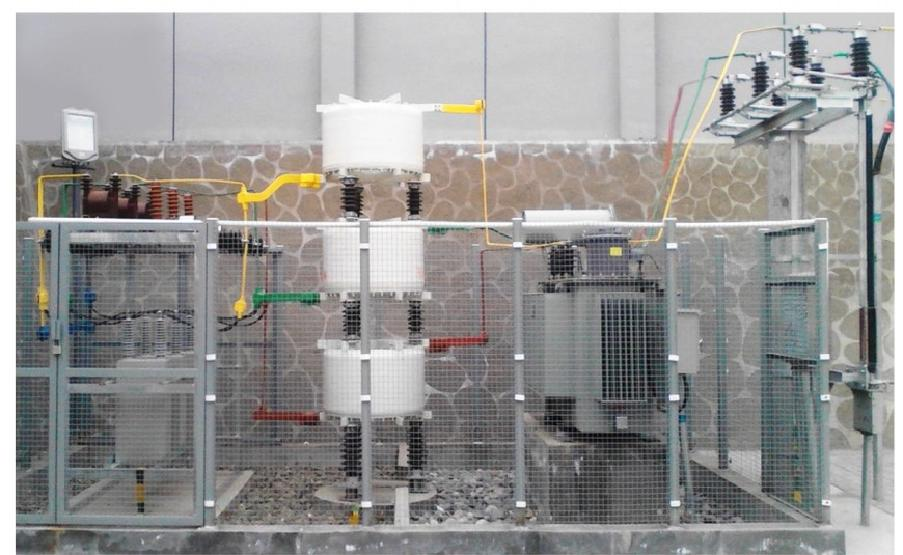

SVQR-type Voltage Regulation Reactive Power Automatic Compensation Device

EXW

$28,336.24-141,681.19

Shaanxi Sefon Electrical Equipment Co.,Ltd.

Located Region:

China

Address:

Room 1506, Building B, Baode Yungu International, No. 52 Jinye 1 Road, High-tech Zone, Xi'an City, Shaanxi Province

Biz Consulting:

+86 029-88785234

E-mail:

18602922158@163.com

Online Contact

Favorite

Compared to traditional reactive power compensation devices in substations, the voltage regulation reactive power automatic compensation device adopts a completely new technical approach, breaking through the conventional method of compensating reactive power by switching capacitors using circuit breakers, vacuum contactors, or other switchgear. This device does not rely on switching capacitors to compensate reactive power but instead utilizes the principle that the capacitive reactive power output of a capacitor is proportional to the square of its terminal voltage. By adjusting the output voltage of the voltage regulator, the terminal voltage of the fixed capacitor bank is altered, achieving fine-tuned reactive power compensation. This product has been granted a national patent, with patent number: ZL201020581802.3.

Main parameter table

Name	Specifications
Grid voltage (kV)	6	10	35
Maximum operating voltage (kV)	7.2	12	40.5
Rated capacity (kVAR)	630~6000	630~12500	1000~36000
Compensation grade	9 levels
Reactive power regulation range	25% ~ 100 or 60% ~ 100
Power factor index	More than 0.95
Adjustment mode	Voltage regulator
Adjust system response time	12s
Control system	DSP full digital control system
Control mode	Automatic/Manual
Number of actions	100000 times
Capacitor Utilization	More than 90%
Surge current	≤ 2 times
Operating overvoltage	very small
Data transmission mode	RS232, RS485, GPRS
Installation method	Indoor, outdoor and box-type transformer
Service life	20 years
Altitude	The altitude is not higher than 2000m (special requirements must be noted when ordering)
Ambient temperature	-25 ℃ ~ +45 ℃ (special requirements must be specified when ordering)
Ambient humidity	<90% at 25 ℃
Rated frequency	50Hz
Installation Environment	No severe mechanical vibration affecting the insulation performance of the device, no harmful gases and vapors, no conductive or explosive dust
Control mode	With intelligent logic control function, according to the voltage reactive power control mode
Protection function	With capacitor overcurrent protection, overvoltage protection, undervoltage protection open triangle protection, voltage regulator gas and temperature protection functions
Communication mode	With a wireless communication module, GPRS or CDMA and other communication methods, to achieve the “four remote” function, users can choose one of the communication methods according to their needs
Phase number	three-phase
Reactor reactance rate	5%, 6%, 12%, etc. (the appropriate reactance rate can be selected according to the actual situation on site)

External dimensions of the autotransformer voltage regulator.

Rated capacity (kVA)	Weight (kg)	Length (mm)	Width (mm)	Height (mm)	No-load loss (kW)	Load loss (kW)	Total loss (kW)	Installation gauge length × width (mm)
630	1235	1760	970	1240	0.317	1.864	2.241	660 × 660
1000	1930	2050	1020	1400	0.380	2.697	3.164	660 × 660
1500	2083	2050	1020	1400	0.501	3.797	4.420	660 × 660
2000	2120	2050	1000	1440	0.633	4.675	5.458	660 × 660
3000	3230	2370	1120	1950	0.850	6.355	7.408	1070 × 1070
3600	2900	2650	1110	1830	1.038	6.307	7.547	1070 × 1070
4000	3430	2600	1172	2075	1.044	7.277	8.554	1070 × 1070
5000	4000	2600	1150	2085	1.265	8.812	10.360	1070 × 1070
6300	4940	2620	1190	2440	1.488	9.934	11.740	1070 × 1070
