Overview

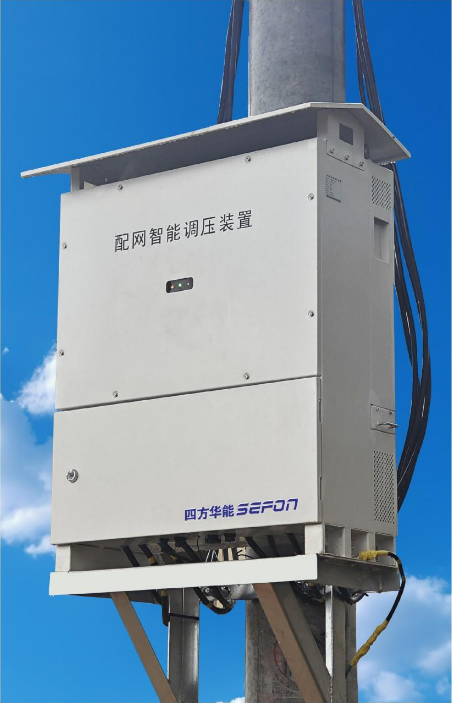

IPSVR intelligent line voltage regulator is designed for high/low voltage regulation in LV distribution grids. Adopting high frequency PWM technology, high-performance control chips, and full-control power electronic components. It uses the most advanced control theory and algorithms to monitor and adjust the line voltage in real-time, The device consists of power unit and bypass unit (Automatic bypass, maintenance bypass), which are connected in series in the power grid. It is easy to install with low renovation costs, high reliability, and also provides functions such as harmonic management,reactive power compensation, and unbalance compensation.

Type Definition

① Company Code

② Product: SVR-Intelligent (Series Connected) Line Voltage Regulator

③ Compensation Capacity: kVA

④ Voltage Level: kV

⑤S - In Series P-In parallel T-Transformer Coupling

⑥ A- Fan Cooling N -Convection

Working Principle

When the grid voltage is within the normal range, the automatic bypass is closed, the power unit is in standby state, the load is directly powered by the grid;

When the grid input voltage is low or fluctuates, the automatic bypass quickly breaks, the inverter compensates a required voltage value, and continues to provide the rated voltage to the load;

When the grid voltage returns to normal voltage range, the automatic bypass closed, the power unit is converted to standby state, and the load is directly powered by the grid;

When the SVR fails or is maintained, the load will automatically switch to the maintenance bypass Ql, the load is directly powered by the grid.

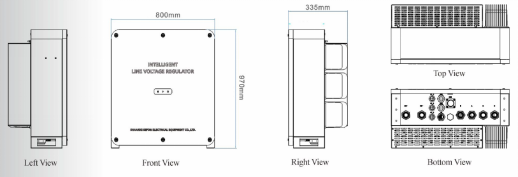

Dimension

Application Scenarios

Undervoltage Lines

Long distribution feeder (>700m); Agricultural and breeding users far away from living areas; Undervoltage caused by high load during peak hours in morning, noon and evening; Undervoltage caused by seasonal electricity peaks such as holidays, spring irrigation period, summer hot time, etc.

Overvoltage Lines Due to Distributed Generation

After distributed generation is connected to the power grid,if it is not properly planned or operated, it may cause local grid overvoltage problems due to excessive power, reversed power flow, or insufficient power grid capacity

Product Features

Wide Voltage Regulation Range

Adjustrange over -40%-+30%

Technical Features

Adjust voltage automatically

Full-electric components/Contactless

Respond rapidly to fast voltage variations

Suitable for any kinds of loads

Cost Effective

No need line expansion

Low investment

Economical Alternative

Increase power transmission

Reduce line losses

Flexible Use

Flexible and independent of location

Assembly/disassembly as required

Safe & Reliable

Installed in-series

Paralleled electric bypass +maintenance bypass

Multi-applications

Voltage regulation

THD compensation

Reactive power compensation

Bypass mode

Unbalance compensation

Multi-protection

Short circuit, leak current, over temp./voltage/current/frequency/load, low voltage/frequency and lighting protection etc.

IP54 design, suitable for rugged environments such as high temperature, high humidity, salt fog, dust etc.

Smart Monitoring

Support 4G, remote monitoring & smart operation.

Long Life Design

High quality components

Independent air duct design
