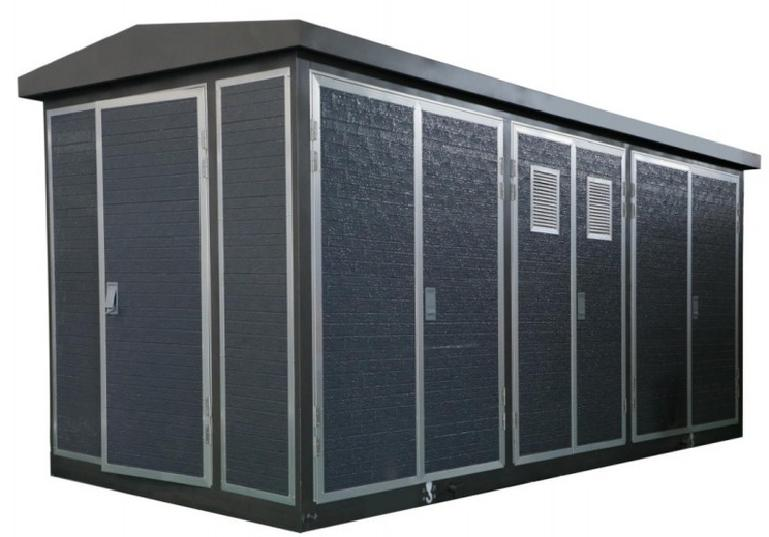

The YB▢-40.5(12) series prefabricated box-type substation (also known as a box-type transformer) is a complete distribution device that integrates high-voltage distribution equipment, transformers, and low-voltage distribution devices into a unified assembly based on a specific wiring scheme. It is used in 40.5(12)/0.4kV or 40.5/12kV AC three-phase systems as a complete power distribution and transformation unit for receiving and distributing electrical energy.

The YB▢-40.5(12) box-type transformer is an outdoor product that does not occupy building space, saves on construction costs, and is small, lightweight, visually appealing, compact, and easy to install. It fully meets the IEC1330 standard requirements and is suitable for urban public distribution, street lighting, industrial and mining enterprises, high-rise buildings, residential areas, oil fields, docks, and construction sites.

Technical parameters of box-type transformer

Name		Unit	Technical parameter requirements
Rated voltage Un	High voltage main circuit	kV	10
Rated voltage Un	Low voltage main circuit	kV	0.4/0.22
Thermal stability current	High voltage main circuit	kA	20
Thermal stability current	Low voltage main circuit	kA	Note 1
Dynamic stability current	High voltage main circuit	kA	50
Dynamic stability current	Low voltage main circuit	kA	105
1min power frequency withstand voltage	High voltage main circuit	kV	42 (switch), 35 (transformer)
1min power frequency withstand voltage	Low voltage main circuit	kV	2.5
3 seconds	Auxiliary circuit	kV	2
Transformer capacity		KVA	-
Group Style		-	Shaped like Chinese characters “品” or “目”
Protection level		-	IP33D
Noise level		dB	≤ 45dB
Note 1: The thermal stability current of the low-voltage functional unit shall be 50kA; the rated thermal stability time of the low-voltage functional unit shall be 1s.
