10kV Distribution Network Series Compensation Device
1/1

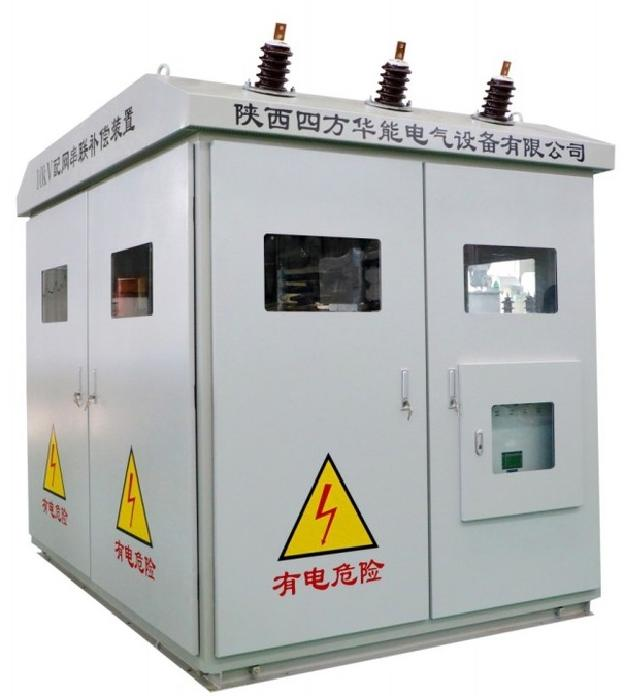

10kV Distribution Network Series Compensation Device
EXW
$42,504.36-70,840.59
Shaanxi Sefon Electrical Equipment Co.,Ltd.
China
Room 1506, Building B, Baode Yungu International, No. 52 Jinye 1 Road, High-tech Zone, Xi'an City, Shaanxi Province
+86 029-88785234
Online Contact
Favorite
Product Introduction

The main function of the 10kV distribution line series compensation device is to improve the voltage distribution along the distribution line, reduce voltage drop, solve low voltage issues, improve power factor, and reduce voltage flicker. It has the characteristics of load "adaptive" regulation, especially for the lines of remote mountain villages, with large electric motor load, heavy end load, and heavy seasonal load.

Product Parameters

Device Model

SFSC-10kV-T

Rated voltage

10kV

Maximum operating voltage

12kV

Rated current

Configuration according to line condition

Rated capacity

Configuration according to line condition

Rated frequency

50Hz

Device weight

2500kg

Device working environment

a) Temperature range:-25 ℃ to 45 ℃

b) Altitude: ≤ 2000m

c) Relative humidity of ambient air: ≤ 90%

d) No severe mechanical vibration, strong electric field or strong magnetic field

e) No harmful gases and vapors that damage insulation and corrode metals

f) No conductive or explosive dust

Outdoor box style

Outdoor box style

Device size

2200mm*L, 1700mm wide, 2300mm high.
