Quick-installation Small Steam Turbine

Negotiable

Located Region:

China

Address:

No. 7 Wuyang Road, Shibei District, Qingdao City, Shandong Province

Biz Consulting:

+86 0532-86125168

E-mail:

287559795@qq.com

Online Contact

Favorite

Suitable for mechanical drive applications (ideal for directly driving compressors, oil pumps, blowers, water pumps, generators, etc.)

Innovative and advanced design structure; compact overall size, light weight, and high efficiency

Equipped with Japan KOEI Nucom actuator or U.S. Woodward TG-17 (TG-17E) actuator

Uses ZH100 digital governor or U.S. Woodward 2301D governor

Features dual mechanical-electrical overspeed protection

Professionally optimized moving and stationary blades throughout the unit

Adopts integrated design for easy installation

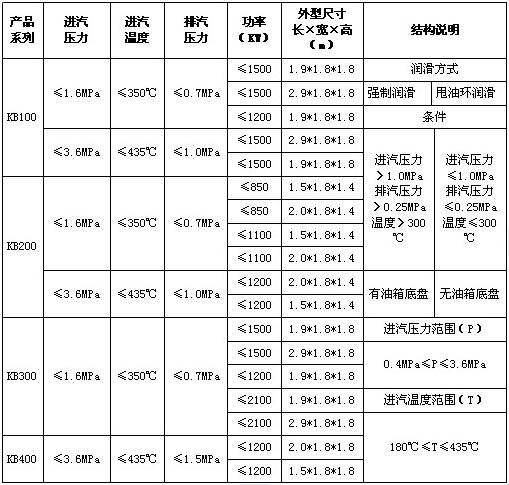

Product series	Inlet steam pressure	Inlet steam temperature	Exhaust pressure	Power (KW)	Exterior dimension Length × Width × Height (mm)	Structure description
KB100	≤1.6MPa	≤ 350℃	≤ 0.7MPa	≤ 1500	1.91.81.8	Lubrication method
				≤ 1500	2.91.81.8	Forced lubrication	Oil slinger lubrication
				≤ 1200	1.91.81.8	Condition
	≤3.6MPa	≤ 435℃	≤ 1.0MPa	≤ 1500	2.91.81.8	Inlet steam pressure> 1.0MPa Exhaust pressure> 0.25MPa Temperature> 300 ℃	Inlet steam pressure ≤ 1.0MPa Exhaust pressure ≤ 0.25MPa Temperature ≤ 300 ℃
				≤ 1500	1.91.81.8
KB200	≤ 1.6MPa	≤ 350℃	≤ 0.7MPa	≤ 850	1.51.81.4
				≤ 850	2.01.81.4
				≤ 1100	1.51.81.4
				≤ 1100	2.01.81.4
	≤ 3.6MPa	≤ 435℃	≤ 1.0MPa	≤ 1200	2.01.81.4	Chassis with fuel tank	No fuel tank chassis
				≤ 1200	1.51.81.4
KB300	≤ 1.6MPa	≤ 350 ℃	≤ 0.7MPa	≤ 1500	1.91.81.8	Inlet pressure range (P)
				≤ 1500	2.91.81.8	0.4MPa≤P≤3.6MPa
				≤ 1200	1.91.81.8
				≤ 2100	1.91.81.8	Inlet temperature range (T)
				≤ 2100	2.91.81.8	180℃<T≤435℃
				≤ 2100	2.91.81.8
KB400	≤ 3.6MPa	≤ 435 ℃	≤ 1.5MPa	≤ 1200	2.01.81.8
				≤ 1200	1.51.81.8
