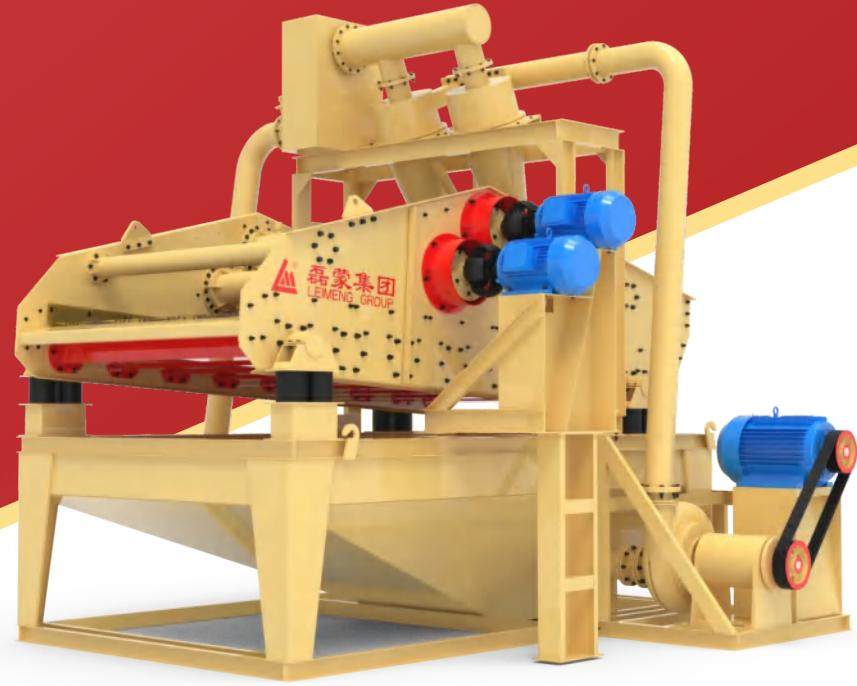

ZKX Series Fine Sand Recovery Integrated Machine

Negotiable
China
No.152 Xingye Road, Longxing Village, Aotou Town, Conghua District, Guangzhou City, Guangdong Province
4008056999
Online Contact
Favorite
Product Introduction

This series of products is a fine sand recovery machine designed by our company by absorbing advanced fine sand recovery technology and combining it with practical usage conditions.

It is widely used in mud purification, sand and gravel aggregate systems for hydropower stations, glass raw material processing systems, artificial sand production lines, coarse coal slurry recovery in coal preparation plants, as well as environmental protection projects, shield machine mud purification, and tailings dry discharge treatment in metal and non-metal beneficiation plants.

Product Parameters

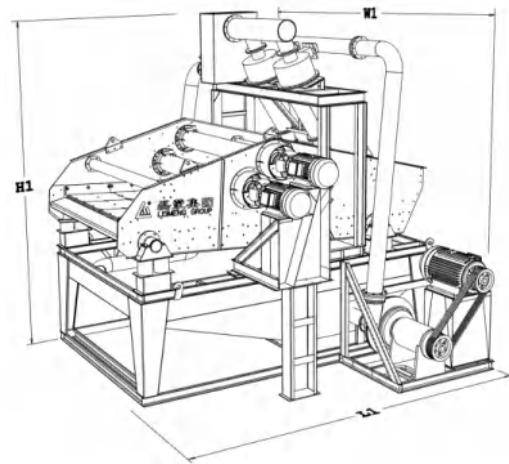

Specifications

Model

Length L1

Width W1

Height H1

ZKX1845-B2A

5105

4305

4890

ZKX2045-B2A

5105

4505

4890

ZKX2245-B2A

5105

4705

5035

ZKX2445-B2A

5105

4905

5035

ZKX2045-D2C

5105

4505

4890

ZKX2245-D2C

5105

4705

4890

ZKX2445-D2C

5105

4905

4890

ZKX2460-B4C

6605

4505

4890

ZKX3053-D2C

5905

5505

4890

Performance Parameters

Model

Dehydration Screen Surface Specification mmxmm

Dehydration Screen Motor Power

Cyclone

Slurry Pump Flow Rate m³/h

Slurry Pump Motor Power

Processing Capacity t/h

ZKX1845-B2A

1800X4500

11kW-6X2

350#X2

200

37kW-6

96-128

ZKX2045-B2A

2000X4500

15kW-6X2

350#X2

200

37kW-6

120-160

ZKX2245-B2A

2200X4500

15kW-6X2

350#X2

200

37kW-6

144-192

ZKX2445-B2A

2400X4500

18.5kW-6X2

350#X2

200

37kW-6

152-208

ZKX2045-D2C

2000X4500

15kW-6X2

500#X2

400

55kW-6

112-160

ZKX2245-D2C

2200X4500

15kW-6X2

500#X2

400

55kW-6

144-192

ZKX2445-D2C

2400X4500

18.5kW-6X2

500#X2

400

55kW-6

152-208

ZKX2460-B4C

2400X6000

18.5kW-6X2

350#X4

400

55kW-6

176-240

ZKX3053-D2C

3000X5250

22kW-6X2

500#X2

400

75kW-6

240-288
