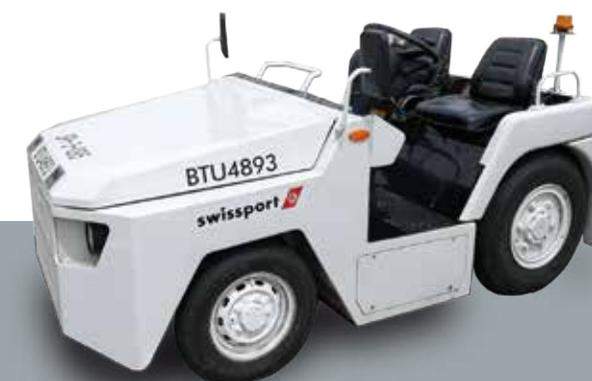

GT4 Baggage Tow Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

GT4 Baggage Tow Tractor is a small tractor with front axle steering, rear axle driving, and hydromechanical transmission. This vehicle can be used to tract pallets and small aircraft. It is designed expressly to meet demanding operational needs. The fast traveling speed and small turning radius brings outstanding maneuverability to any worksite.

Safety

  • Engine over-speed protection;
  • Preheating protection;
  • Water high temperature protection;
  • Engine oil low pressure protection;
  • Engine oil high temperature protection;
  • Inlet low pressure protection, etc.

Features

  • Automatic transmission;
  • Front wheel steering;
  • Rear wheel drive;
  • Four-wheel hydraulic brake.
Product Parameters
MAIN CONFIGURATION   OPTIONAL
Engine Cummins Canopy Aircraft Damage Prevention System
Transmission EXEDY Enclosed Cab Telemetry
Driving Axle Hefei Haiyuan Reversing Camera & Radar Monitoring System
    Tire III/IV Emission
PARAMETERS
Self Weight 4,100 kg Min. Ground Clearance 120 mm
Max. Driving Speed 26 km/h Front Tread 1,280 mm
Dimensions(excl. Coupling) 2,890mm × 1,450mm × 1,500mm Rear Tread 1,200 mm
Max. Draw Bar Pull 28 kN Wheelbase 1,620 mm
Tractive Tonnage 31,500 kg Min. Turning Radius 3,500 mm
