WGGS/GGS Series Potable Water Truck

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

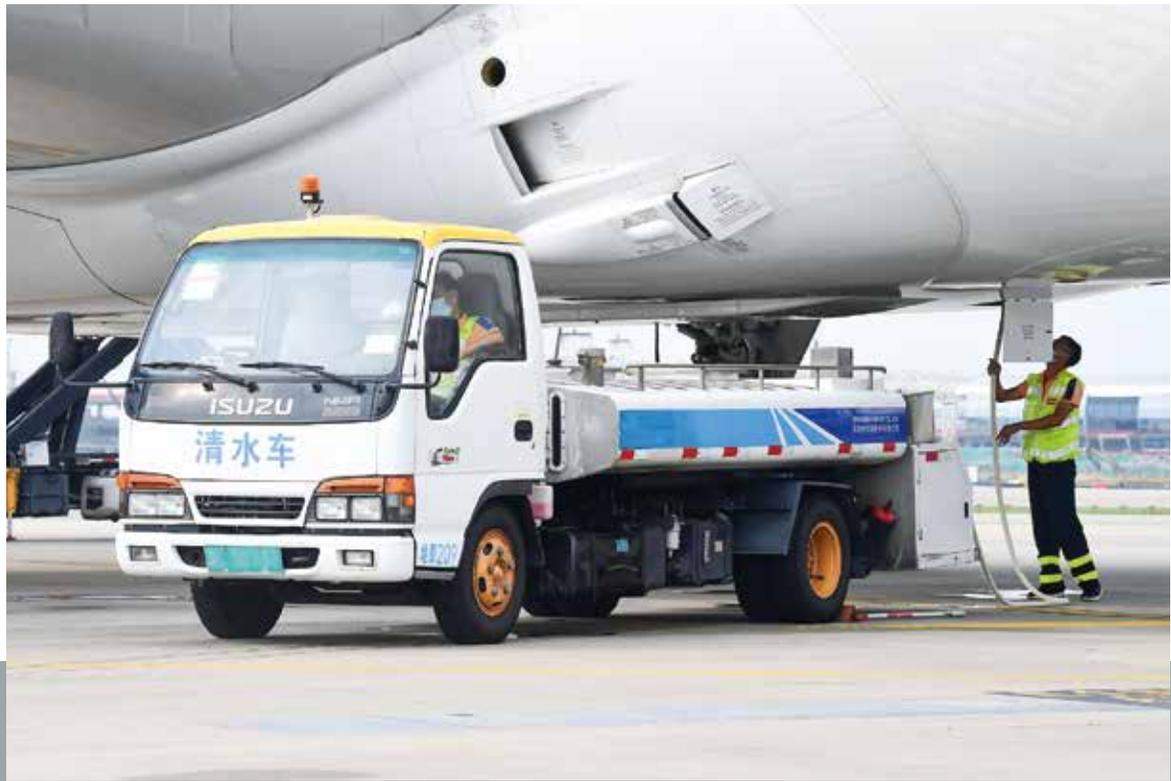

Weihai Guangtai provides a series of aircraft potable water service vehicles, capable of supplying potable water to all available civil aircrafts. The compact and low profile design allows the vehicles drive safely under the belly of both narrow and wide body aircrafts.

Safety

  • The hydraulic cylinder for lifting platform is equipped with hydraulic lock;
  • Emergency hydraulic valve to lower the lifting platform;
  • Emergency STOP switch;
  • Proximity switch on the platform to avoid damaging aircraft fuselage.

APPLICABLE
Applicable to all known civil aviation aircraft types.

Product Parameters

MAIN CONFIGURATION

  GGS30 WGGS40 GGS50
Chassis JMC/ISUZU ISUZU MAN
Water Pump Stainless Steel Centrifugal Pump
Water Tank Stainless Steel Tank

OPTIONAL

Winterization Kit, Flowmeter, Rear Lifting Platform, Disinfection Case, Reversing Camera, Reversing Radar, Driving Recorder.  Telemetry

PARAMETERS

  GGS30 WGGS40 GGS50
Water Tank Capacity 2,600 L 3,600 L 4,800 L
Flow Rate 170 L/min 170 L/min 170 L/min
Supplying Hydraulic Pressure 0.25 - 0.345 MPa 0.25 - 0.345 MPa 0.25 - 0.345 MPa
Min. Turning Radius 6,800 mm 6,900 mm 7,600 mm
Max. Driving Speed 80 km/h 80 km/h 90 km/h
