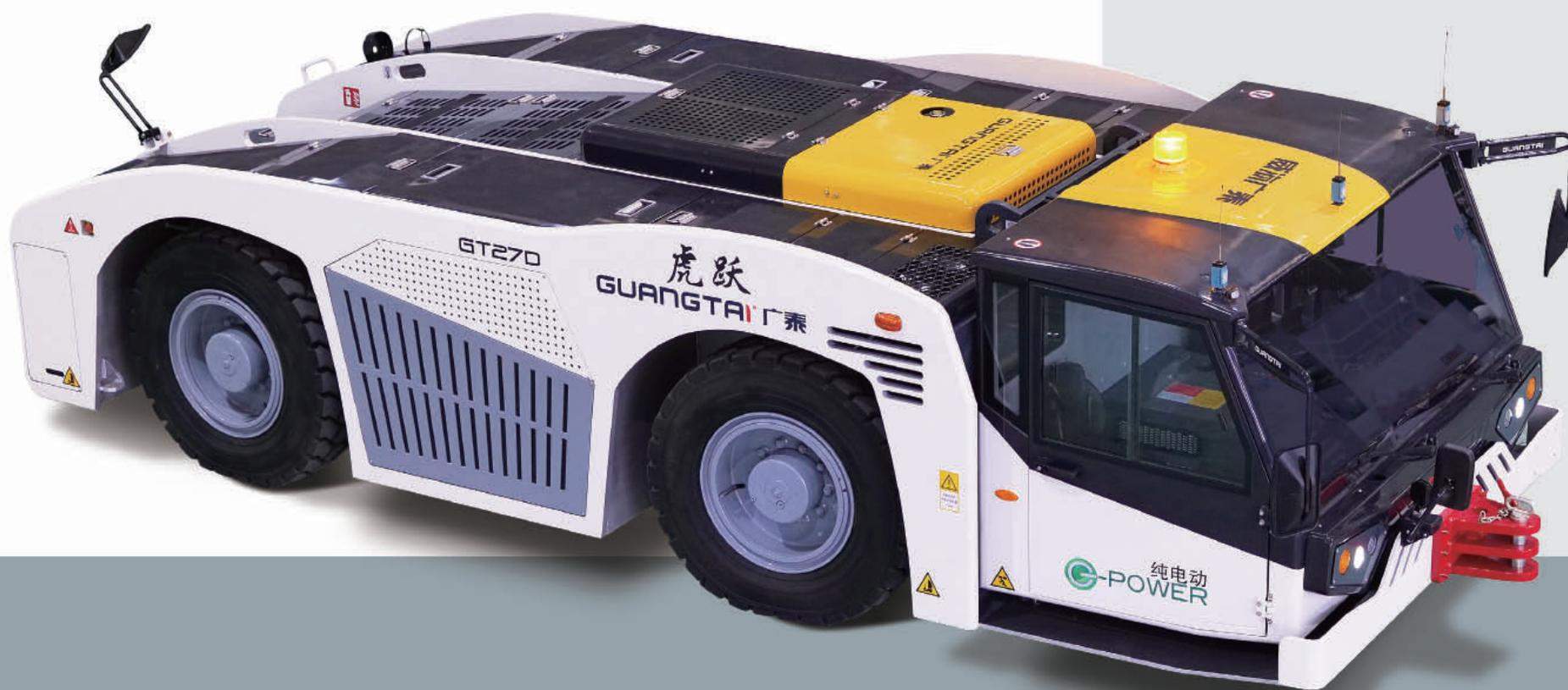

GT27D TIGER 27-t Electric Aircraft Tow Tractor

Negotiable
China
No.16, Huanghe Street, Huancui District, Weihai City, Shandong Province, China (264200)
+86 631 3803235
Online Contact
Favorite
Product Introduction

The all new GT27D-TIGER Electric Aircraft Tow Tractor is based on an innovative and highly efficient structure. This model can be used to push and tow aircraft up to a weight of 320 tons.

  • Li-ion LFP Battery
  • High Voltage System
  • Low Temperature Suitable
  • Automatic Fire Suppression
  • Telemetry

Features

Front-wheel / Four-wheel / Crab steering;
Automatic wheel alignment;
Fully-hydraulic steering and braking system.

Safety

Emergency steering;
Emergency braking;
Automatic Fire Suppression;
Crash barrier against damage of battery box;
Interlock protection between charging and driving function;
Interlock between hand brake and driving, etc.

Product Parameters



MAIN CONFIGURATION OPTIONAL
Battery CATL, LFP battery Face Recognition
Motor Jing-Jin, PMSM motor On-board Charger
Battery Capacity 175.04kWh/210.56kWh 360° Panorama Camera
Axle Kessler Telemetry

PARAMETERS

Dimensions 6470×2690×1767mm (w/o coupling)
Max. Draw Bar Pull 210 kN
Charging Time min. 1.5h
Gross Weight 27,000 kg
Min. Turning Radius Fron-wheel 7,650mm
Four-wheel 4,750mm
Max. Driving Speed 30 km/h
Travel Range 115 km
Temperature Range -35-60°C

APPLICABLE

  GT27D
ERJ-145
ARJ
B737
B757
B777-200
B787
A319
A320
A340
A350
