| Frequency Range | 9kHz/100kHz to 4.5GHz/9GHz (3657A/B/AM/BM) |
300kHz to 14GHz/20GHz/26.5GHz (3657C/D/E/CM/DM/EM/CU/DU/EU) |
| Dynamic Range | 98dB(9kHz ~ 100kHz) 110dB(100kHz ~ 10MHz) 140dB(10MHz ~ 6GHz) 136dB(6GHz ~ 9GHz) |
95dB(300kHz ~ 18MHz) 140dB(18MHz ~ 6GHz) 130dB(6GHz ~ 9GHz) 120dB(9GHz ~ 14GHz) 110dB(14GHz ~ 20GHz) 100dB(20GHz ~ 26.5GHz) |
| IF Bandwidth | 1Hz to 5MHz | |
| Maximum Output Power | 0dBm(9kHz ~ 100kHz) 10dBm(100kHz ~ 9GHz) |
10dBm(300kHz ~ 14GHz) 0dBm(14GHz ~ 26.5GHz) |
| Interface Type | LAN, GPIB, USB | |
1/1

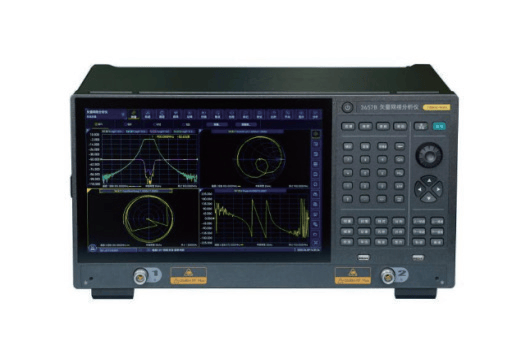

3657 Series Vector Network Analyzer
Negotiable
China
No.98 Xiangjiang Road, Huangdao District, Qingdao City, Shandong Province
+8615253257006
+8615253257006
lvzunyang@ceyear.com
Product Parameters
