INTEGRATED CAST STEEL FLOATING BALL VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Parameters

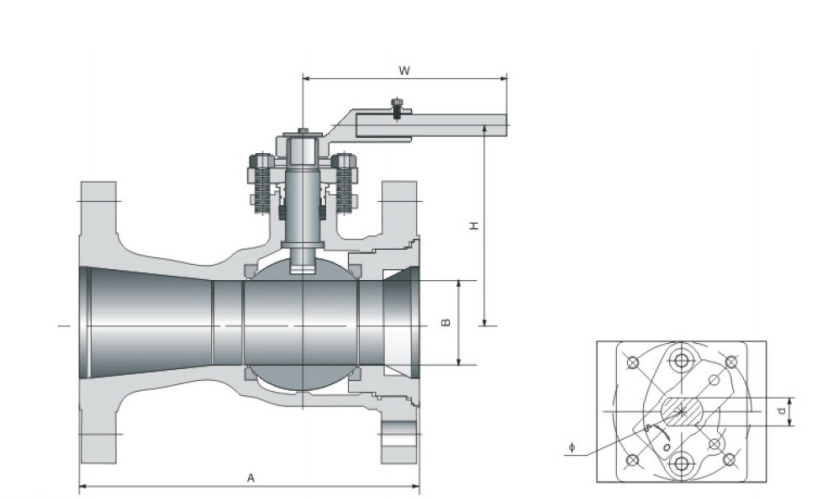

THE MAIN DIMENSIONS AND WEIGHT

CLASS 150
NPS
inch		 A B W H Φ d WT
mm mm mm mm mm mm kg
1/2x3/8 108 13 150 63 10 6 2.5
3/4x1/2 117 13 180 84 10 6 2.9
1x3/4 127 19 180 87 12 8 4
1 1/2x1 165 32 220 102 18 12 6.8
2x1 1/2 178 38 242 137 20 14 9.2
3x2 1/2 203 60 242 167 20 14 15.8
4x3 229 76 350 205 30 20 30
6x4 267 100 460 220 30 20 53.5
8x6 292 144 550 313 40 30 82
*10x8 330 187 460 396 50 36 146
CLASS 300
NPS
inch		 A B W H Φ d WT
mm mm mm mm mm mm kg
1/2x3/8 140 13 150 66 10 6 3.5
3/4x1/2 152 13 180 84 10 6 4
1x3/4 165 19 180 87 12 8 5
1 1/2x1 191 32 220 102 18 12 10
2x1 1/2 216 38 242 137 20 14 11.2
3x2 1/2 283 60 242 167 20 14 23
4x3 305 76 350 205 30 20 40
6x4 403 100 460 220 30 20 82
8x6 419 144 550 313 40 30 125

* the worm gear operation
