WAFER LIFT TYPE CHECK VALVE

Negotiable
Shanghai Huhang Valves Co., Ltd.
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
Online Contact
Favorite
Product Introduction

DESIGN AND MANUFACTURING STANDARDS

  • Design and Manufacturing according to ASME B16.34, API 594, API 6D
  • End Dimension as per ASME B16.5, ASME B16.47
  • Face to face according to API 594, API 6D
  • Inspection and test as per API 598
Product Parameters

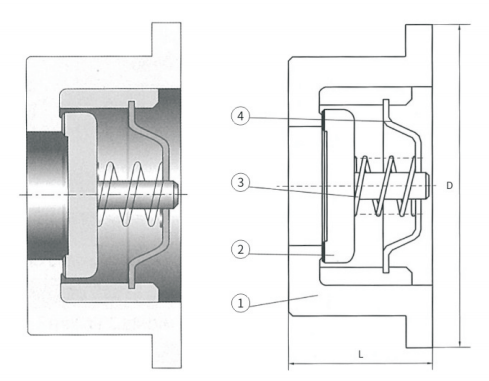

COMPONENTS DESCRIPTION MATERIAL
1 Body WCB、CF8、CF8M、FC3、CF3M
2 Disc WCB、CF8、CF8M、FC3、CF3M
3 Spring INCONEL、17-7PH
4 Spring support seat F6a、304、316、304L、316L、17-7PH

MAIN DIMENSION AND WEIGHT

CLASS 150~900
SIZE Class 150 Class 300 Class 600 Class 900
L W WT L W WT L W WT L W WT
inch mm mm Kg mm mm Kg mm mm Kg mm mm Kg
1/2 25 46 0.28 25 52 0.3 25 52 0.4 25 62 0.6
3/4 31.5 56 0.42 31.5 65 0.46 31.5 65 0.8 31.5 69 0.9
1 35.5 65 0.56 35.5 72 0.6 35.5 72 1.0 35.5 77 1.2
1-1/4 40 74 0.75 40 81 0.8 40 81 1.3 40 87 1.5
1-1/2 45 84 1.3 45 94 1.5 45 94 1.8 42 97 2.0
2 56 103 2.1 56 110 2.4 56 110 2.8 56 140 5.5
2-1/2 63 122 2.8 63 128 3.0 63 128 4 63 162 7.5
3 71 135 3.6 71 147 4.0 71 147 6 71 165 8
4 80 173 4.8 80 179 5.5 80 191 11 80 204 14
5 110 195 12 110 214 13 110 239 25 110 245 27
6 125 220 17 125 249 22 125 264 32 125 286 41
8 160 277 29 160 305 36 160 318 52 160 356 76
