| 12KTA58（G31-G37） | |
|---|---|
| Type | V-type, four-stroke, direct injection, turbocharged with exhaust gas, water-cooled intercooler |
| Intake Method | Turbocharged and intercooled |
| Number of Cylinders × Bore × Stroke (mm) | 12×170×210 |
| Cylinder Liner Type | Wet type |
| Compression Ratio | 18:1 |
| Displacement (L) | 57.2 |
| Fuel System | High-pressure common rail |
| Rated Power (kW) | 1160~2010 |
| Rated Speed (rpm) | 1500 |
| Standby Power (kW) | 1280~2210 |
| Minimum Fuel Consumption Rate (g/kWh) | 188 |
| Lubricating Oil Capacity (L) | 222~313 |
| Cooling System Capacity (L) | 142.7 / 56 |
| Oil Consumption Rate (g/kWh) | ≤0.3 |
| Emission Standard | China Stage III |
| Noise (dB-A) | 102 |
| Engine Weight (kg) | 7610 |
| Length × Width × Height (mm) | 2762×1582×2193 |
| Flywheel Housing/Flywheel | SAE 00# & 21# |
1/1
12VK Generator Set Engine
Negotiable
China
No. 2636 Jungong Road, Yangpu District, Shanghai
021-60652288
Product Introduction
Other products from this supplier
Negotiable
Marine D-Series Engine
Negotiable

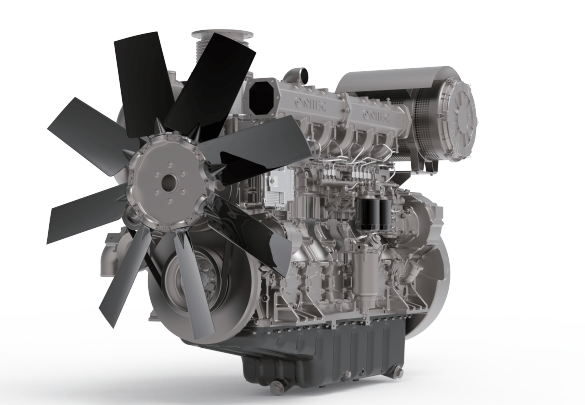

K Series Generator Set Engines
Negotiable

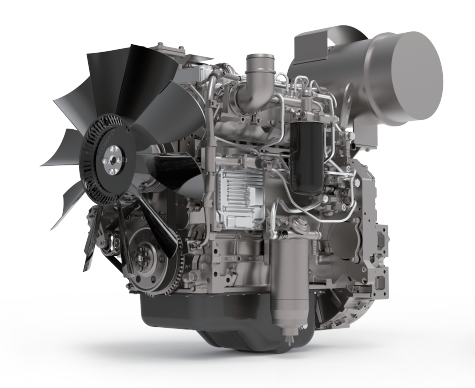

H Series Generator Set Engines
