DESIGN AND MANUFACTURING STANDARDS
Design and Manufacturing according to API 602
End Dimension as per ASME B16.5, ASME B16.25
Inspection and test as per API 598
1/1
FORGED STEEL THREAD, SOCKET WELDED CHECK VALVE
Negotiable
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
gjb-cln36661@shhh-valve.com
Product Introduction
Product Parameters

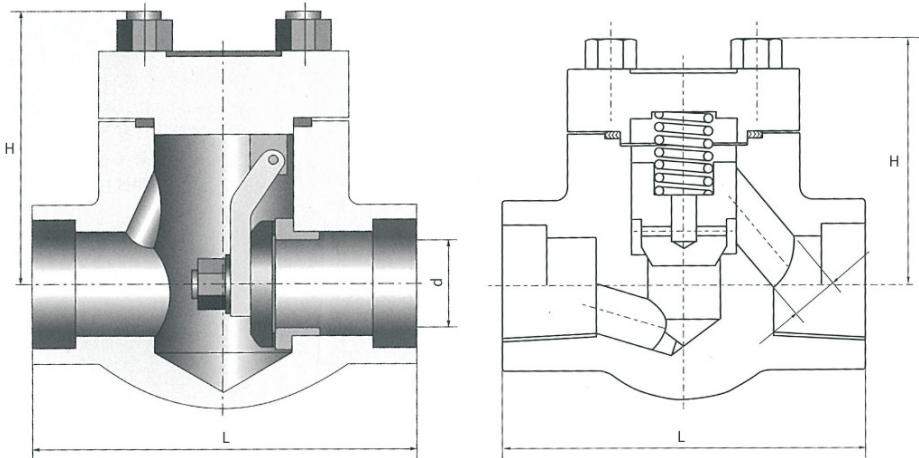

MAIN DIMENSION AND WEIGHT
| CLASS 150~800 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE | L(mm) | H(mm) | WEIGHT (Kg) | ||||||
| inch | mm | LIFTING TYPE | SWING TYPE | LIFTING TYPE | SWING TYPE | LIFTING TYPE | SWING TYPE | ||
| REDUCE BORE | FULL BORE | REDUCE BORE | FULL BORE | ||||||
| 1/4 | 8 | 79 | 79 | 61 | 61 | 1.1 | 1.0 | ||
| 3/8 | 1/4 | 10 | 8 | 79 | 79 | 61 | 61 | 1.2 | 1.1 |
| 1/2 | 3/8 | 15 | 10 | 79 | 79 | 61 | 61 | 1.3 | 1.2 |
| 3/4 | 1/2 | 20 | 15 | 92 | 92 | 61 | 61 | 1.4 | 1.3 |
| 1 | 3/4 | 25 | 20 | 111 | 111 | 78 | 78 | 2.3 | 1.9 |
| 1-1/4 | 1 | 32 | 25 | 120 | 120 | 84 | 84 | 3.9 | 3.4 |
| 1-1/2 | 1-1/4 | 40 | 32 | 152 | 120 | 103 | 101 | 5.6 | 4.5 |
| 2 | 1-1/2 | 50 | 40 | 172 | 140 | 118 | 120 | 8.9 | 7.3 |
| 2 | 50 | 200 | 170 | 132 | 133 | 12.5 | 10.0 | ||
| CLASS 900~1500 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| SIZE | L(mm) | H(mm) | WEIGHT (Kg) | ||||||
| inch | mm | LIFTING TYPE | SWING TYPE | LIFTING TYPE | SWING TYPE | LIFTING TYPE | SWING TYPE | ||
| REDUCE BORE | FULL BORE | REDUCE BORE | FULL BORE | ||||||
| 1/4 | 8 | 111 | 111 | 79 | 79 | 3.0 | 3.0 | ||
| 3/8 | 1/4 | 10 | 8 | 111 | 111 | 79 | 79 | 3.1 | 3.1 |
| 1/2 | 3/8 | 15 | 10 | 111 | 111 | 79 | 79 | 3.2 | 3.2 |
| 3/4 | 1/2 | 20 | 15 | 111 | 111 | 79 | 79 | 3.4 | 3.6 |
| 1 | 3/4 | 25 | 20 | 130 | 120 | 97 | 97 | 4.8 | 4.3 |
| 1-1/4 | 1 | 32 | 25 | 152 | 140 | 104 | 105 | 6.9 | 6.1 |
| 1-1/2 | 1-1/4 | 40 | 32 | 172 | 140 | 120 | 120 | 10.7 | 8.8 |
| 2 | 1-1/2 | 50 | 40 | 220 | 162 | 139 | 140 | 14.6 | 12.6 |
| 2 | 50 | ||||||||
