DESIGN AND MANUFACTURING STANDARDS
- Design and Manufacturing according to BS 5352, ASME B16.34, API 602
- End Dimension as per ASME B16.5
- Inspection and test as per API 598
1/1

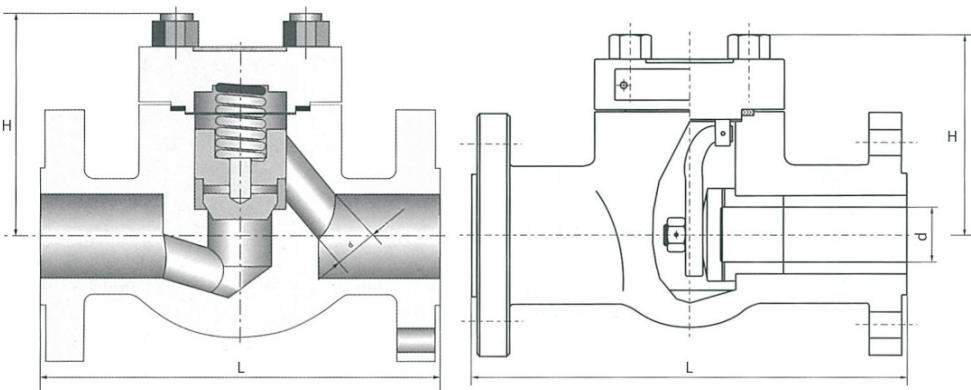

FORGED STEEL FLANGED CHECK VALVE
Negotiable
China
No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City
13162305541
13706691500
gjb-cln36661@shhh-valve.com
Product Introduction
Product Parameters
MAIN DIMENSION AND WEIGHT
| CLASS 150~600 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | CLASS RATE | L(mm) | H(mm) | WEIGHT (Kg) | |||||||
| LIFTING TYPE | SWING TYPE | LIFTING TYPE | SWING TYPE | ||||||||
| inch | mm | REDUCE BORE | FULL BORE | REDUCE BORE | FULL BORE | REDUCE BORE | FULL BORE | REDUCE BORE | FULL BORE | ||
| 1/2 | 15 | 150 | 108 | 61 | 61 | 61 | 61 | 2.6 | 3.4 | 2.5 | 3.3 |
| 300 | 152 | 2.7 | 3.7 | 2.6 | 3.6 | ||||||
| 600 | 165 | 3.0 | 4.0 | 2.9 | 4.3 | ||||||
| 3/4 | 20 | 150 | 117 | 61 | 78 | 61 | 78 | 3.4 | 4.4 | 3.3 | 4.8 |
| 300 | 178 | 3.7 | 4.7 | 3.6 | 5.1 | ||||||
| 600 | 190 | 4.0 | 5.8 | 4.3 | 6.2 | ||||||
| 1 | 25 | 150 | 127 | 78 | 84 | 78 | 84 | 4.4 | 8.2 | 4.8 | 7.0 |
| 300 | 203 | 4.7 | 8.8 | 5.1 | 7.4 | ||||||
| 600 | 216 | 5.8 | 9.5 | 6.2 | 7.7 | ||||||
| 1-1/4 | 32 | 150 | 140 | 84 | 103 | 84 | 101 | 8.2 | 8.9 | 7.0 | 7.5 |
| 300 | 216 | 8.8 | 9.6 | 7.4 | 7.9 | ||||||
| 600 | 229 | 9.5 | 10.1 | 7.7 | 9.3 | ||||||
| 1-1/2 | 40 | 150 | 165 | 108 | 118 | 101 | 120 | 8.9 | 12.0 | 7.5 | 11.3 |
| 300 | 229 | 9.6 | 13.7 | 7.9 | 11.7 | ||||||
| 600 | 241 | 10.1 | 15.6 | 9.3 | 13.2 | ||||||
| 2 | 50 | 150 | 203 | 118 | 132 | 120 | 133 | 12.6 | 14.3 | 11.3 | 13.6 |
| 300 | 267 | 13.7 | 17.8 | 11.7 | 16.8 | ||||||
| 600 | 292 | 15.6 | 24.6 | 13.2 | 20.5 | ||||||
