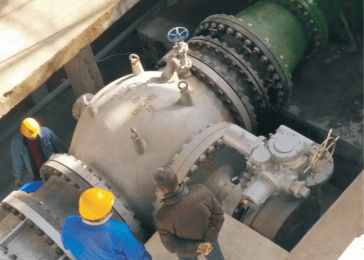

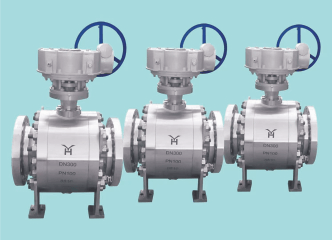

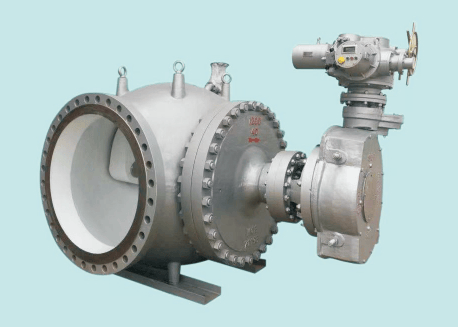

Full Bore C Type Wear Resistant Ball Valve

Appluication Area
1. Polysilicon, organic silicon.
2. Coal chemical industry:
① medium: coal powder, coal water slurry, cinder, black slag water, ash water valve, coal slurry (pump) cut-off valve, slag water pump import and export valve, slag water process valve.
②Dry distillation refinery: residuum, anti-coking, catalyst ball valve.
③suitable temperature for crude oil production, synthetic fuel and ethyl chloride: <550 °C
3. iron and steel industry.
Ironmaking (PCI): blast furnace pulverized coal injection-lance injection of high-density material ironmaking (DRI): direct reduction-700℃ high-temperature iron particles feed ironmaking (OXY): pig iron desulphurization-adding MGO2, auxiliary materials such as SIO₂ steelmaking (EAF): arc furnace injection of carbon powder-add O₂, N₂, carbon and other components.
4. The field of thermal power plants.
5. Pulp making: waste water treatment for pulp making: waste pulp treatment, causticizing, etc.-lime + acid liquor, additive for paper making, MgO₂, titanium dioxide, silica, talc, etc.

Nominal pressure: PN10-PN100/PN250 (CL150-CL600/CL1500)
Nominal diameter: DN50-DN2000 (2"-80")
Operating Temperature: MAX.450°C/900°C (842F/1652F)
Control mode: high frequency switch
Spool type: C type
Body material: carbon steel, stainless steel, alloy steel, other
Vulnerable parts: easy to replace
Actuator: manual, electric, pneumatic, hydraulic/others
Accessories configuration: according to user requirements configuration
The design and manufacture adopt standard: BS5351, BFC170-2, API 608, ISO 17292, ISO 5211, GB/T 12237
The flanged connection adopts standard: ASME B16.5, ASME B16.47, GB 9112-9114, GB 13402, HG 20592-20626, SH 3406
The structure length is adopted as standard: ASME B16.10, ISO 5752, GB/T 12221, AFAOB 2009
Standards for testing and inspection: API598, GB/T 13927, MSS SP-61
