FULLY WELDED TRUNNION MOUNTED BALL VALVE

Negotiable

Shanghai Huhang Valves Co., Ltd.

Located Region:

China

Address:

No. 59 Tinghua Road, Tinglin Town, Jinshan District, Shanghai City

Biz Consulting:

13162305541

WhatsApp:

13706691500

E-mail:

gjb-cln36661@shhh-valve.com

Online Contact

Favorite

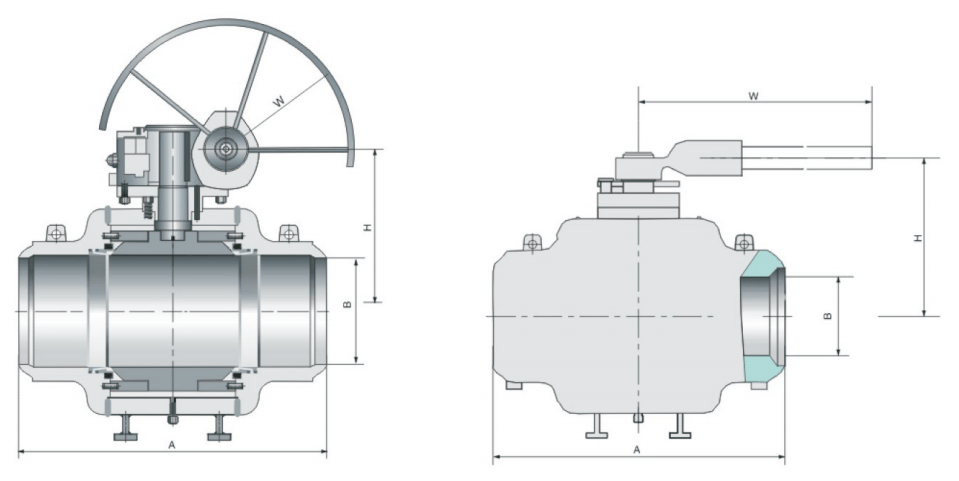

THE MAIN DIMENSION AND WEIGHT

CLASS 150
NPS inch	A	B	H	W	WT	T	NPS inch	A	B	H	W	WT	T
NPS inch	mm	mm	mm	mm	Kg	N.m	NPS inch	mm	mm	mm	mm	Kg	N.m
2	216	49	185	500	20	50	*18	914	436	550	600	1450	4574
3×2	283	49	185	500	30	50	*20×18	991	436	550	600	1600	4574
3	283	74	190	600	41	65	*20	991	487	600	750	1750	6016
4×3	305	74	190	600	60	65	*24×20	1143	487	600	750	2300	6016
4	305	100	220	650	70	151	*24	1143	589	705	750	2850	9750
6×4	457	100	220	650	118	151	*28	1346	684	810	800	3500	14540
*6	457	150	270	600	180	320	*30	1397	735	850	800	4800	18005
*8×6	521	150	270	600	215	320	*32	1524	779	880	800	5500	21350
*8	521	201	320	600	250	1020	*36	1727	874	1060	800	8500	17000
*10×8	559	201	320	600	320	1020	*40	1780	976	1150	800	11500	37000
*10	559	252	350	600	400	1085	*42	1960	1020	1200	800	12500	39000
*12×10	635	252	350	600	480	1085	*48	2100	1166	1360	800	18500	42776
*12	635	303	400	600	560	1562	*56	2250	1360	1480	800	30500	65654
*14×12	762	303	400	600	700	1562
*14	762	334	460	600	830	2426
*16×14	838	334	460	600	940	2426
*16	838	385	500	600	1050	3018

*worm gear operation

CLASS 300
NPS inch	A	B	H	W	WT	T	NPS inch	A	B	H	W	WT	T
NPS inch	mm	mm	mm	mm	Kg	N.m	NPS inch	mm	mm	mm	mm	Kg	N.m
2	216	49	185	500	20	86	*18	914	436	550	600	1450	8000
3×2	283	49	185	500	30	86	*20×18	991	436	550	600	1600	8000
3	283	74	190	600	41	110	*20	991	487	600	750	1750	10610
4×3	305	74	190	600	60	100	*24×20	1143	487	600	750	2300	10610
4	305	100	220	650	70	270	*24	1143	589	705	750	2850	17280
6×4	457	100	220	650	118	270	*28	1346	684	810	800	3500	25102
*6	457	150	270	600	180	544	*30	1397	735	850	800	4800	31664
*8×6	521	150	270	600	215	544	*32	1524	779	880	800	5500	37580
*8	521	201	320	600	250	1620	*36	1727	874	1060	800	8500	35170
*10×8	559	201	320	600	320	1620	*40	1780	976	1150	800	11500	39115
*10	559	252	350	600	400	1824	*42	1960	1020	1200	800	12500	42414
*12×10	635	252	350	600	480	1824	*48	2100	1166	1360	800	18500	71868
*12	635	303	400	600	560	2632	*56	2250	1360	1480	800	30500	91238
*14×12	762	303	400	600	700	2632
*14	762	334	460	600	830	4280
*16×14	838	334	460	600	940	4280
*16	838	385	500	600	1050	5376

CLASS 600
NPS inch	A	B	H	W	WT	T	NPS inch	A	B	H	W	WT	T
NPS inch	mm	mm	mm	mm	Kg	N.m	NPS inch	mm	mm	mm	mm	Kg	N.m
2	292	49	185	500	27	148	*18×15	1092	385	500	700	2190	9174
3×2	356	49	185	500	40	148	*18	1092	436	560	762	2380	13520
3	356	74	190	600	48	200	*20×18	1194	436	560	762	2620	13520
4×3	432	74	210	600	74	200	*20	1194	487	620	762	2875	18034
4	432	100	220	650	95	460	*24×20	1397	487	620	762	3600	18034
6×4	559	100	220	650	180	460	*24	1397	589	700	762	4830	29512
*6	559	150	270	600	210	908	*24×28	1549	589	700	762	5310	29512
*8×6	660	150	270	600	325	908	*28	1549	684	840	762	5900	42264
*8	660	201	320	600	405	2560	*30×28	1651	684	840	762	6530	42264
*10×8	787	201	320	600	510	2560	*32×28	1778	684	840	762	6950	42264
*10	787	252	350	600	655	3048	*32	1778	781	1245	765	9940
*12×10	838	252	350	600	805	3048	*34	1930	832	1245	765	11570
*12	838	303	400	700	915	4300	*36	2083	876	1315	765	13530
*14×12	889	303	400	700	1035	4300	*40	2337	978	1320	765	18570
*14	889	334	450	700	1228	7255	*42	2437	1022	1405	765	21590
*16×12	991	303	400	700	1345	4300	*48	2540	1168	1595	765	31550
*16×14	991	334	450	700	1450	7255	*56	2949	1384	1855	765	47840
*16	991	385	500	700	1705	9174

*worm gear operation

CLASS 900
NPS inch	A	B	H	W	WT	T	NPS inch	A	B	H	W	WT	T
NPS inch	mm	mm	mm	mm	Kg	N.m	NPS inch	mm	mm	mm	mm	Kg	N.m
2	368	49	180	650	40	208	*14	1029	322	600	600	1515	10220
3×2	381	49	180	650	45	20	*16×14	1130	322	600	600	1750	10220
3	381	74	208	700	70	280	*16	1130	373	620	600	2420	12968
4×3	457	74	208	700	85	280	*18×16	1219	373	620	600	565	12968
4	457	610	222	800	110	650	*18	1219	423	658	750	2740	19054
6×4	610	100	222	800	215	650	*20×18	1321	423	658	750	2900	19054
*6	610	150	283	460	255	1298	*20	1321	471	715	750	3325	25452
*8×6	737	150	283	460	450	1298	*24×20	1549	471	715	750	3410	25452
*8	737	201	420	460	525	3596	*24	1549	570	850	750	6500	43276
*10×8	838	201	420	460	720	3596	*28	1753	665	930	800	9500	59410
*10	838	252	490	600	810	4306	*30	1880	712	980	800	12000	76000
*12×10	965	252	490	600	1000	4306	*32	2032	760	1040	800	13200	90195
*12	965	303	560	600	1270	6000	*36	2286	855	1160	800	17500	101500
*14×12	1029	303	560	600	1435	6000

*worm gear operation

CLASS 1500							CLASS 2500
NPS inch	A	B	H	W	WT	T	NPS inch	A	B	H	W	WT	T
NPS inch	mm	mm	mm	mm	Kg	N.m	NPS inch	mm	mm	mm	mm	Kg	N.m
*2	368	49	164	350	48	330	*2	451	42	233	460	63	446
*3	470	74	236	460	113	440	*3	578	62	251	600	145	802
*4	546	100	261	600	195	1034	*4	673	87	288	600	280	1588
*6	705	144	430	600	578	2084	*6	914	131	517	600	770	5501
*8	832	192	413	600	745	5496	*8	1022	179	550	600	1360	11785
*10	991	239	481	600	1195	9936	*10	1270	223	616	750	2100	13222
*12	1130	287	563	750	2165	14175	*12	1422	265	680	750	3210	20075
*14	1257	315	645	750	2245	21000
*16	1384	360	695	750	2758	27000
*18	1537	406	750	750	3640	34392
*20	1664	454	830	750	4490	40918
*24	1943	546	990	750	7150	65351

*worm gear operation
